Technical Parameters:

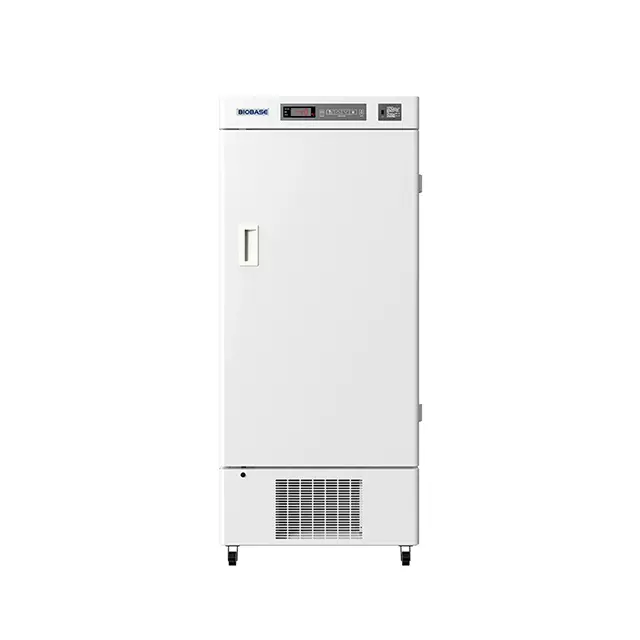

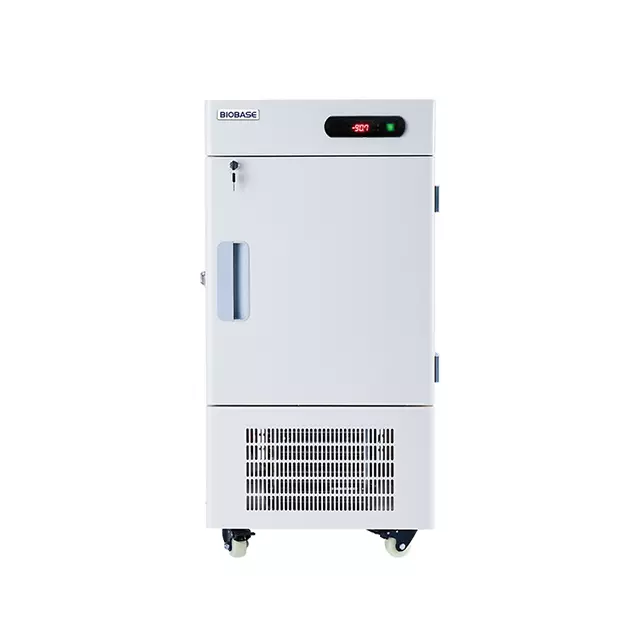

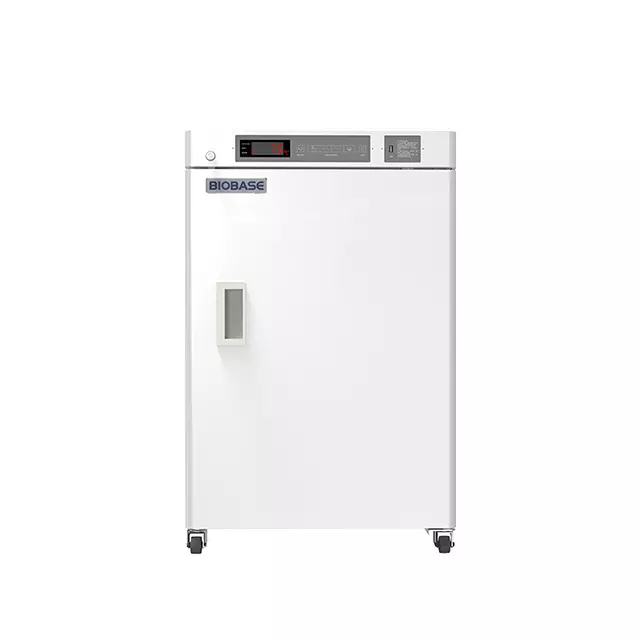

| Model | BDF-40V58 | BDF-40V90 | BDF-40V208 | BDF-40V268 | ||
| Capacity | 58L | 90L | 208L | 268L | ||
| Temp. Range | -15~-40℃ | |||||
| Temp. Accuracy | 0.1℃ | |||||
| Temp. Uniformity | ≤4℃ | |||||
| Temp. Stability | ≤4℃ | |||||
| Recovery Time(Recover to -37℃ in an ambient temp. of 25℃) | 40min | ≤15min | ≤30min | |||
| Cooling Time(Cool down to -40℃ in an ambient temp. of 25℃) | 50min | ≤1.5h | ≤4h | |||
| Control System | Microprocessor control | |||||
| Display | LED | |||||
| Alarm | High and low temperature alarm, thermostat fault alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(8h) | ||||
| Refrigeration Type | Direct-cooling | |||||
| Refrigerant | R404A/R23/150g | R290/43g | R290/75g | R290/75g | ||
| Compressor | International famous brand compressor/1 | |||||
| Condenser&Evaporator | Finned copper tube condenser; built-in coil type copper tube evaporator | Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator | ||||
| Defrost | Manual defrost | |||||
| Construction | Polyurethane cyclopentane foam | |||||
| Material | Internal Material | 304 stainless steel | ||||
| External Material | Sprayed steel plate | |||||
| Door | Outer door: sprayed steel plate outer door*1
Interior door: 304 stainless steel door*1 |
Outer door: sprayed steel plate outer door*1
Interior door: cold plate spray door*3 |
Outer door: sprayed steel plate outer door*1
Interior door: cold plate spray door*4 |
|||
| Consumption | 290W | 252W | 284W | 286W | ||
| Power Supply | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC220V. 50Hz(Standard);
220V, 60Hz, 110V, 60Hz(Optional, external transformer |
AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional, external transformer) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | ||
| Casters | Yes | |||||
| Shelf | 1 | 2 | 3 | |||
| Standard Accessory | Test hole, USB interface | |||||
| Optional Accessory | Temperature recorder, RS485 | Temperature recorder, RS485, printer | ||||
| Internal Size(W*D*H) | 364*405*410mm | 440*447*640mm | 520*453*1013mm | 520*567*1013mm | ||
| External Size(W*D*H) | 540*620*1115mm | 600*610*945mm | 690*630*1631mm | 690*744*1631mm | ||
| Package Size(W*D*H) | Plywood case: 670*760*1290mm
Honeycomb cardboard box: 590*785*1320mm |
730*730*1140mm | 840*750*1810mm | 810*860*1820mm | ||
| Net Weight | 58kg | 63kg | 112kg | 115kg | ||
| Gross Weight | 73kg | 82kg | 133kg | 140kg | ||
