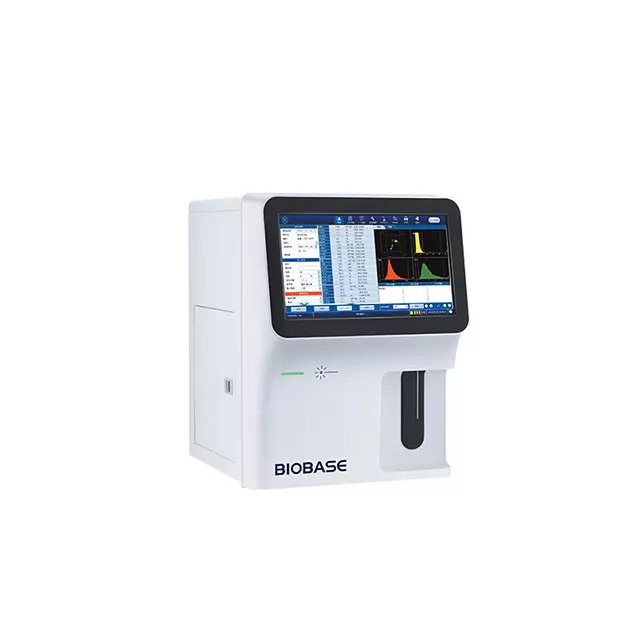

BK-6310VET
Our 5-Part Veterinary Hematology Analyzer represents cutting-edge technology in veterinary diagnostics, offering precise and efficient blood analysis for comprehensive veterinary care. With its advanced features and user-friendly interface, it provides veterinarians with accurate results quickly, aiding in timely diagnoses and treatment decisions.
Features:
1. Throughput 60T/H.
2. 14-inch touch screen.
3. Tri-angle laser scatter + flow cytometry method + impedance method for RBC and PLT counting.
4. 3D holographic scattergram displays the accurate 5-part differentiation of WBC.
5. Large storage capacity: 300,000 results(including histogram, scattergram, animal information).
Technical Parameters:
| Model | BK-6310VET | |||
| Throughput | 60 Tests/hour | |||
| Sample Profile | Dog, cat, horse, sheep, goat, camel, cow, more species coming soon | |||
| Assay Items | 5 parts, 29 parameters, 3 histograms, 3D scattergram | |||
| Principle | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test | |||
| Test Mode | CBC mode, CBC+DIFF mode
Venous whole blood, prediluted |
|||
| Sample Volume | CBC+DIFF mode: ≤20μl
CBC mode: ≤10μl |
|||
| Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#. 4 research parameters: ALY%, ALY#, LIC%, LIC# | |||
| Performance | Item | Linearity range | Carry Over | CV |
| WBC | 0~300*109/L | ≤0.5% | ≤2.0% | |
| RBC | 0~8.6*1012/L | ≤0.5% | ≤1.5% | |
| HGB | 0~260g/L | ≤0.5% | ≤1.5% | |
| PLT | 0~3000*109/L | ≤1.0% | ≤4.0% | |
| Storage | 300,000 results including histograms, scattergrams and patient information | |||
| Interface | 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader | |||
| Power Supply |
AC100-240V,50/60Hz, 300VA |
|||
| Package Size(W*D*H) | 575*490*690mm | |||
| Gross Weight | 46kg | |||
| Reagent Package Size | 330*330*330mm, 400*290*240mm, 400*290*240mm | |||
| Reagent Gross Weight | 22kg 2kg, 2kg | |||
