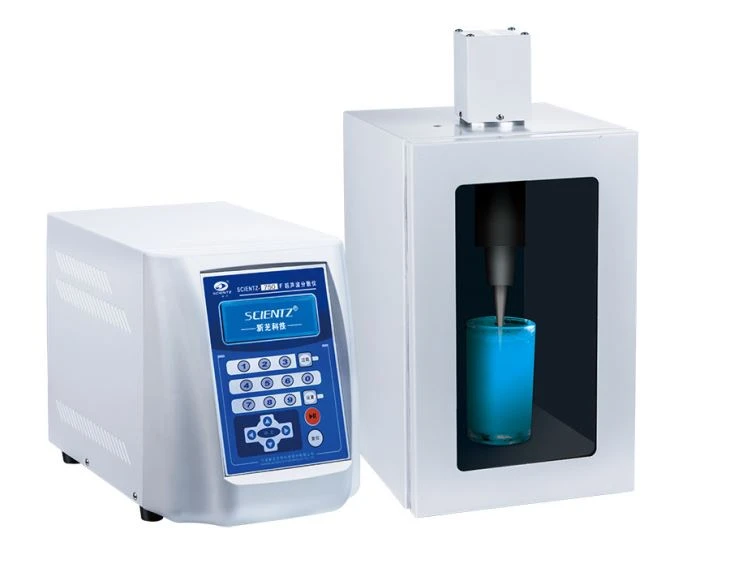

F Series Ultrasonic Homogenizer
ULTRASONIC HOMOGENIZER 8346\8360
Ultrasonic Homogenizer is ultrasonic treatment equipment specially designed for dispersing materials; it has the advantages of strong power output and good dispersion effect.
Application area：
Materials chemistry: the dispersion and emulsification,and homogeiization of nanomaterials,such as carbon nanotubes, graphene and other materials.
Features：
1.With new software,central microcomputer centralized control
2.It adopts Backlit and LCD large screen display
3.Ultrasonic power step with 1% continuous adjustable.
4.With pulse and continuous operation, and with test function
5.Ultrasonic time, gap time, and total time can be accurate to 0.1 seconds.
Technical Parameters：
| Model | Scientz-750F | Scientz-1500F | Scientz-2400F |
| Frequency | 19.5-20.5 KHz | 19.5-20.5 KHz | 19.5-20.5KHz |
| Display | LCD | LCD | LCD |
| Adjustable power range | 750 W(20%-99%) | 1500 W(20%-99%) | 2400 W(20%-99%) |

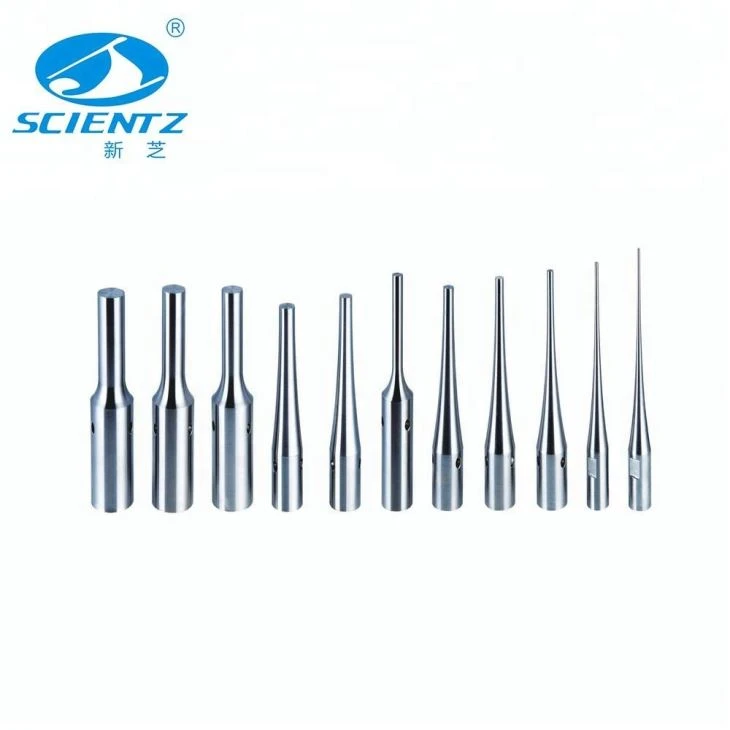

| Accompany Tip | 10mm | 20mm | 38mm |
| Optional Tip | 6,15 mm | 15,25 mm | 无 |
| Processing Volume | 5-700 ml | 50-1200 ml | 500-5000 ml |
| Duty Ratio | 0.1-99.9% | 0.1-99.9% | 0.1-99.9% |
| Temperature Alarm | Yes(Prevent sample overheating) | Yes(Prevent sample overheating) | Yes(Prevent sample overheating) |
| Alarm | time,temperature,overload | time,temperature,overload | time,temperature,overload |
| The size of Power Supply Chassis | 400*280*220(mm) | 400*280*220(mm) | 400*280*220(mm) |
| Standard configuration | Generator host 1pc,Dispersing head 1pc,Sound Abating Chamber 1pc | Generator host 1pc,Dispersing head 1pc,Sound Abating Chamber 1pc | Generator host 1pc,Dispersing head 1pc, Sound Abating Chamber 1pc |
