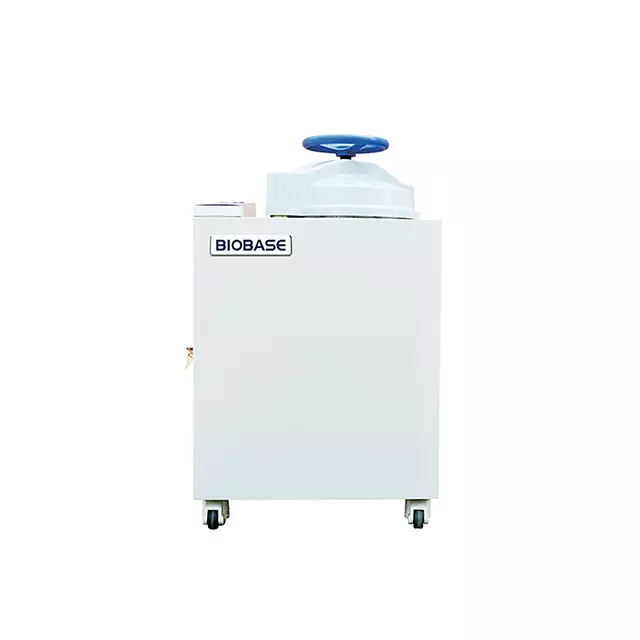

Biosafety Autoclave BKQ-B BL Series

BKQ-B50BL, BKQ-B75BL, BKQ-B100BL, BKQ-B120BL

Biosafety autoclave is suitable for the sterilization of materials, instruments, utensils, culture media and wastes for the purpose of biosafety, in order to prevent the spread of pathogenic factors through aerosols to people, animals and plants or the environment pollution.

Category Tag

Features:

1. True color touch control panel with clear display and easy operation.

2. With waste water collection and waste gas filtration system, it can ensure the sterility of waste water and waste gas finally discharged.

3. The equipment occupies a small space and has a large cavity volume.

4. Footmaster casters, easy to move the equipment.

5. With a quick service window, electrical equipment can be serviced without removing the cover.

6. The machine has a built-in independent steam generator.

7. Self-expanding silicone sealing ring, with good sealing effect and long service life, is made of medical transparent silicone molding.

8. Using single chip control, water injection, heating, sterilization, exhaust, collection, filtration, automatic control, no manual operation.

9. Built-in printer, which can print sterilization data in real time.

10. Deionized water connection for supplying the steam generator.

11. It is equipped with liquid program, medium program and solid program.

12. With an emergency stop button.

Technical Parameters:

Model BKQ-B50BL BKQ-B75BL BKQ-B100BL BKQ-B120BL
Capacity 50L 75L 100L 120L
Designed Pressure 0.28MPa
Working Pressure 0.23MPa
Designed Temp. 150℃
Working Temp. 134℃
Temp. Precision 0.1℃
Chamber Material S30408
Chamber Size φ386*515mm φ386*695mm φ386*875mm φ386*1055mm
Basket φ365*360mm, 1pc φ365*265mm, 2pcs φ365*360mm, 2pcs φ365*360mm, 1pc

φ365*265mm, 2pcs

Noise ≤65dB
Altitude ≤2700m, please make a note when placing an order between 1000~2700 meters
Standard Accessories Printer, basket
Consumption 4KW
Power Supply AC220V, 50/60Hz
External Size(W*D*H) 700*610*1070mm 700*610*1070mm 700*610*1250mm 700*610*1430mm
Net Weight 118kg 122kg 130kg 158kg
Packing Size(W*D*H) 760*670*1255mm 760*670*1255mm 760*670*1435mm 760*670*1615mm
Gross Weight 134kg 138kg 148kg 176kg
