Carbon dioxide(CO2) incubators provide optimal growing conditions and contamination prevention for valuable cell cultures.BIOBASE provides a wide range of CO2 incubators, ranging from a small capacity and volume to a large scale capacity cabinet.
1. IR infrared sensor, using dual-channel dual-filter infrared technology.
2. The inner tank is designed with semicircular corners and the surface is made of 304 stainless steel with electrochemical treatment.
3. Sloped bottom design for smooth drainage, preventing evaporator icing, and improved temperature uniformity.
4. The evaporator’s intake pipe uses a Sanhua solenoid valve to work in coordination with the evaporator’s compartmentalized operation, preventing icing, ensuring rapid cooling, and maintaining stable temperatures.
5. The timed segmented control program allows for the cultivation time and temperature to be preset and automatically adjusted according to requirements, providing convenience for the operator.
6. High-efficiency heating tubes are used to evenly heat all sides of the inner chamber.
7. Equipped with leakage current and over-voltage protectors. Features over-temperature, under-temperature, over-concentration and under-concentration alarms.
Standard Accessories
CO2 Incubator 80L 160L
Technical Parameters:
Model
BJPX-C80III
BJPX-C160III
Type
Low temperature series, air jacket
Sterilization Type
UV sterilization
Capacity
80L
160L
Temp. Sensor
PT100
Temp. Range
10~60℃
Temp. Fluctuation
±0.3℃(@37℃)
Temp. Uniformity
±0.5℃(@37℃)
Temp. Precision
0.1℃
Timing Range
0~999h or continuous

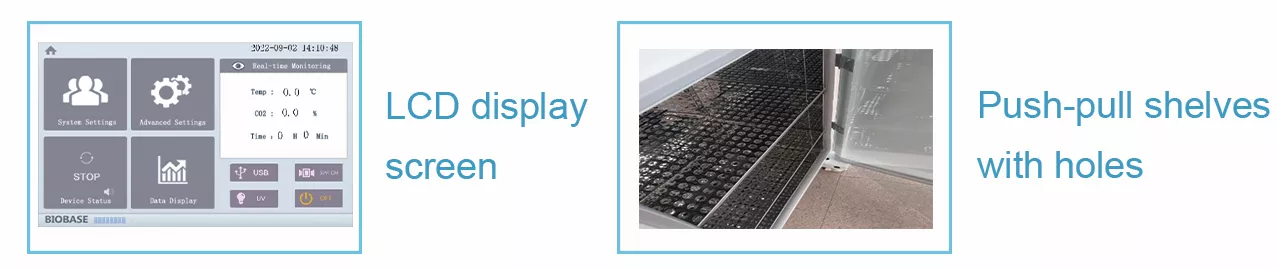

Display
7-inch touch screen
CO2 Control
IR infrared sensor with calibration certificate
CO2 Range
0~20vol%
CO2 Uniformity
0.2vol%
CO2 Control Resolution
0.1vol%
Ambient Temperature and Humidity
Ambient temperature: 5~30℃(Recommendation: 25±2℃)
Ambient humidity: ≤80%
Filter
CO2 gas filter
Power Supply
AC220V, 50Hz(Standard); 110V, 60Hz(Optional)
Wiring method: plug
Consumption
1000W
Shelves
2pcs, adjustable
Standard Accessories
Shelves, USB interface, CO2 relief valve, water tank, CO2 gas filter
