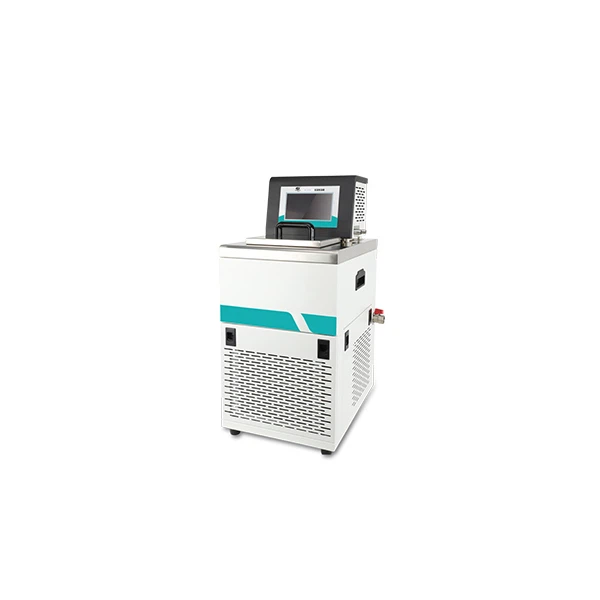

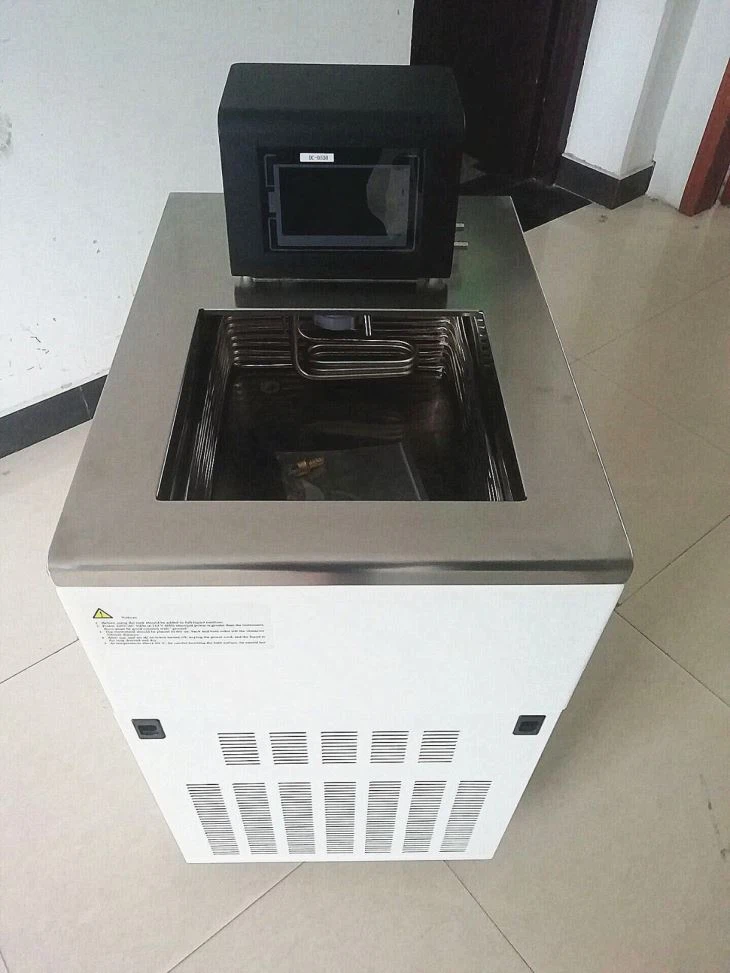

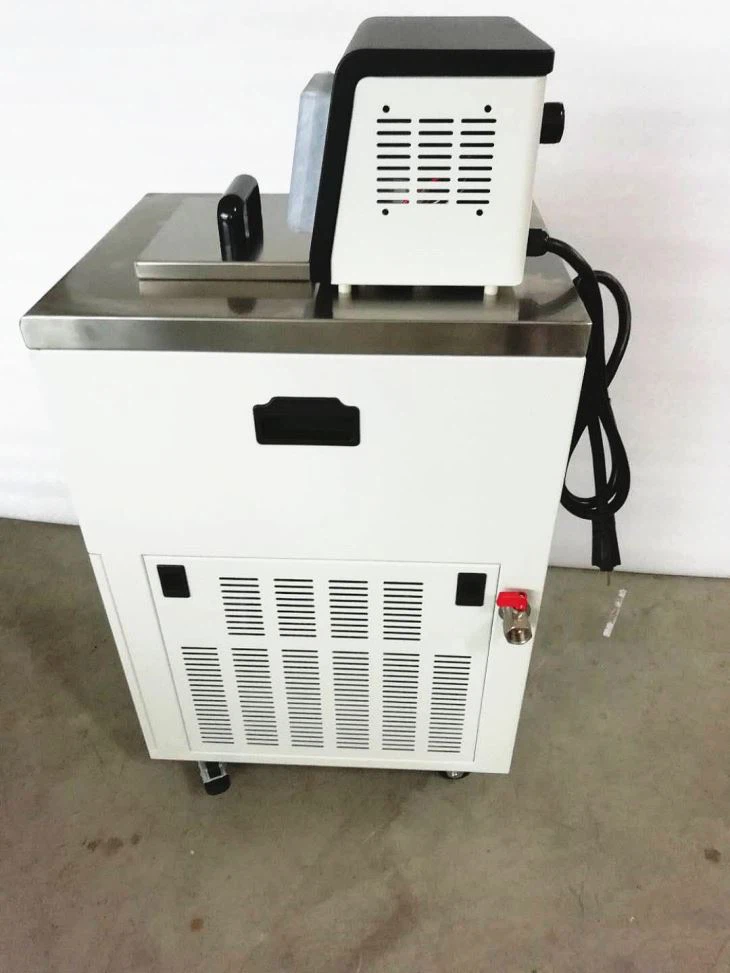

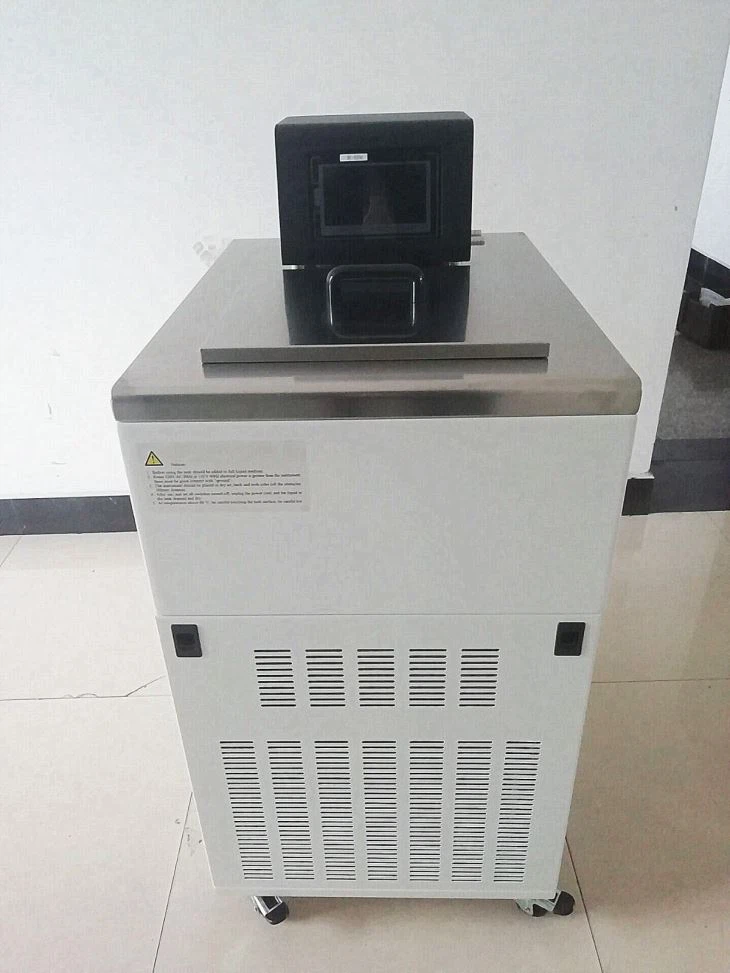

The 10L electrothermal constant temperature water bath casing is made of rectangular steel plate. The stainless steel liner, touch screen display, control panel, and water pump are all installed in the control box. The circulation bath adopts imported compressors and has a fast cooling speed. It also adopts a high-precision intelligent control system to control temperature changes and finally achieve a constant temperature effect.
Lab Water Bath Touch Screen Display
 |
TEM Setting:Shows the temperature set by the guest according to the experimental requirementsTEM Measure:Shows the actual temperature inside the stainless steel circulating tank
Timing:Shows the working time of the lab constant temperature circulating bath
Constant temperature controlled water bath

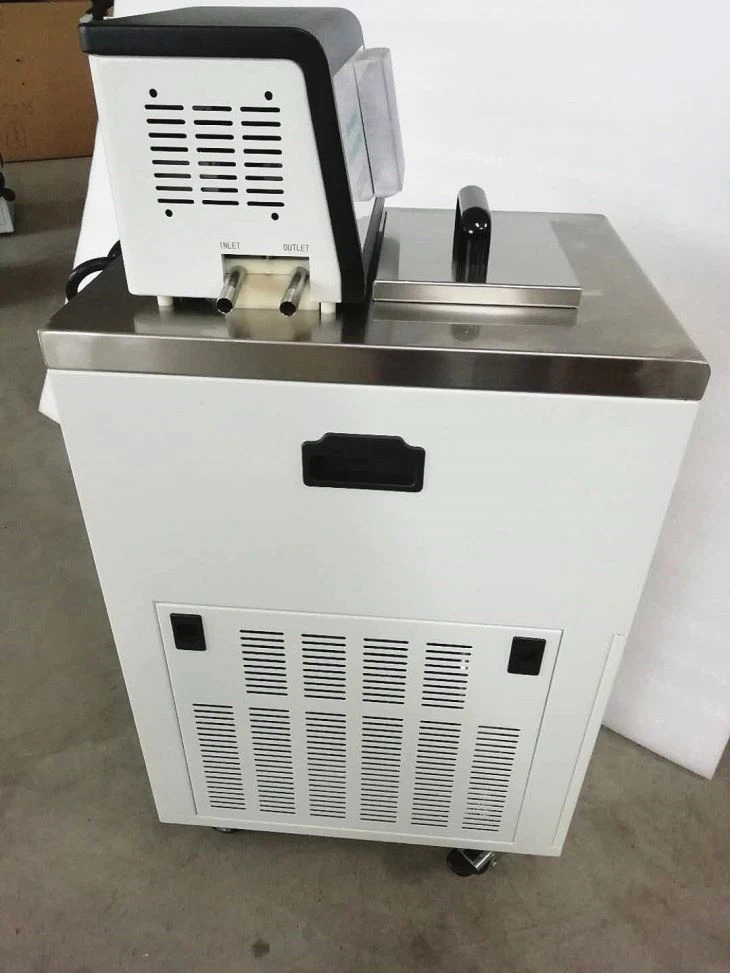

Introduction of water inlet and outlet
 |
1.Stainless steel inlet and outlet, satisfied various material needs
2.The device adopts preform formed stainless steel,resistant to high temperature,anti-corrosion and without leakage
Precautions：
1)Add liquid media into bath before using, Liquid is lower than the workbench face 30 mm can’t boot, in case of burn out the heater
2) Use 220V 50Hz /220V 60HZ/110V 60HZ power supply,power shall be no less than total power of instrument, and power supply receptacle shall be earthed properly.
3) Pump switch: machine on the left side of the circulation pump forced switch please don’t press, unless you have special needs.If switch according to the forced circulation pump, circulating pump will be shut down.This fluid position in the tank temperature will be uneven, constant temperature effect.At this point to switch according to the forced circulation pump circulating pump
