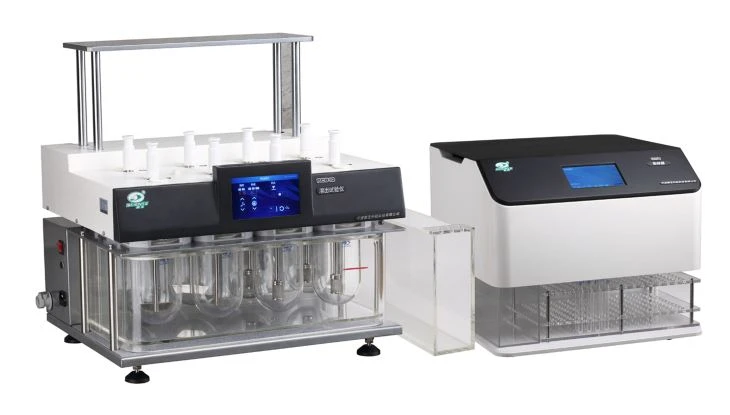

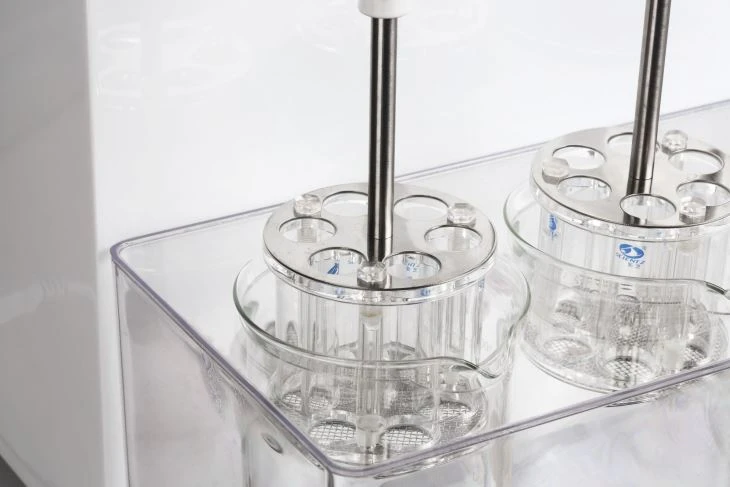

Providing a mechatronics test device controlled by a microcomputer for dissolution measurement, mainly composed of an electric motor, a thermostat, a basket, a stirring paddle, a dissolution cup and a cup cover
Technical indicators：
RC810G Dissolution tester
| Model | RC810G |
| Number of experimental devices | 8 |
| Water bath temperature | Room temperature-45℃ |
| Temperature resolution | 0.01℃ |
| Stirring speed | 25RPM-250RPM |
| Stirring speed resolution | 0.1RPM |
| Dosing channel | 8 |
| Head lift | electric |
| Lighting system | Red light, white light |
| amount of users | 7users |
| user level | Third level |
| User program | 99 |
| Record saving | 128 *366 days |
QY8 Sampler
| Model | QY8 |
| Sampling channel | 8 |
| Number of samples | 16 |
| Longest sampling interval | 99 hours 59 minutes |
| Minimum sampling interval | 1 minute for the first time, the remaining 2-10 minutes (depending on the sample size, sampling method and whether it is rehydration) |
| Continuous working time | 99 hours 59 minutes × 16 |
| Sampling filter cycle | <30 seconds |
| Sample volume (or fluid volume) | 1ml-100ml |
| Single tube distribution | 0ml-15ml |
| Sampling accuracy | RSD1%(10ml) |
| User program | 99 |
| amount of users | 7 users |
| user level | Third level |
| Record saving | 128 *366 days |
