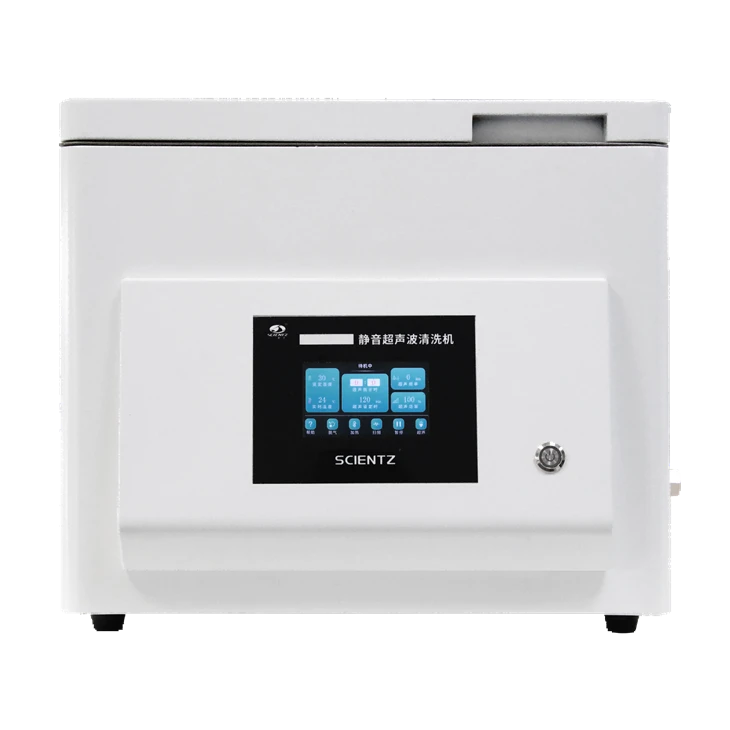

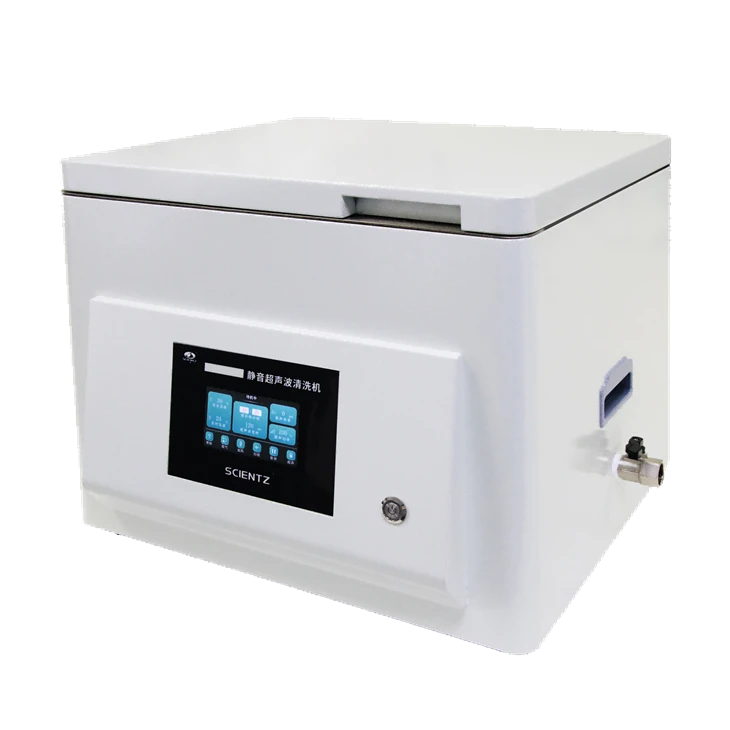

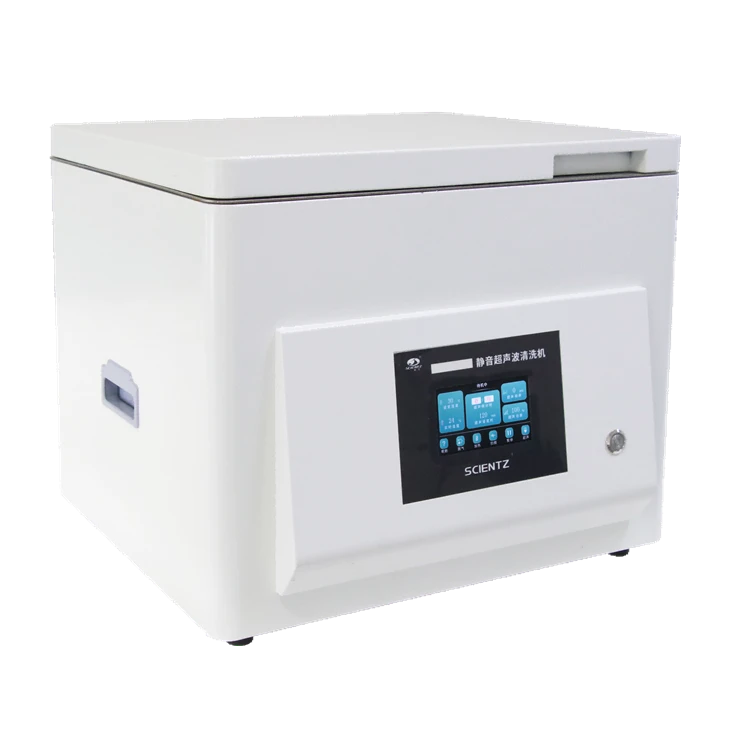

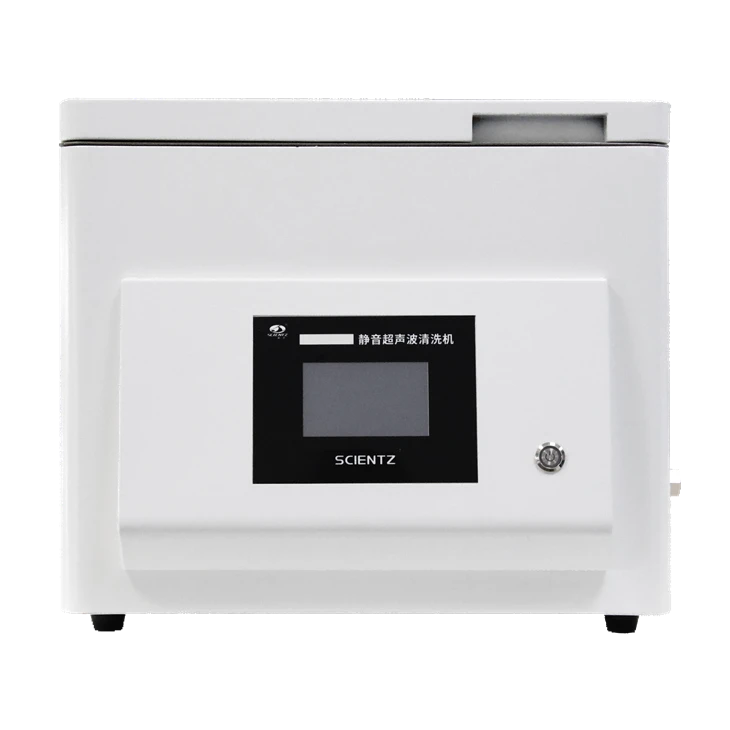

DTD Series Silent Ultrasonic Cleaner

The DTD series silent ultrasonic cleaner utilizes the cavitation effect of ultrasound in the cleaning liquid to accelerate the dissolution and removal of dust, grease, and other contaminants from the inner pores and blind holes of the vessels being cleaned. This ultrasonic cleaner can be used for routine cleaning, extraction, emulsification, mixing, degassing, and dispersion. Its advantages include significantly lower noise compared to traditional ultrasonic cleaners, faster cleaning speed, better cleaning results, no surface damage, and reduced operator workload. The instrument features a touchscreen display and user-friendly interface. It is widely used in laboratories, electromechanical industries, jewelry, medical dentistry, medical devices, and optics.

Working Principle

Through a transducer, the acoustic energy of the high-power ultrasonic source is converted into mechanical vibration, which is then radiated through the cleaning tank wall onto the cleaning liquid. Due to the ultrasonic radiation, microbubbles in the liquid rapidly expand and burst under the influence of the sound waves. The resulting high-intensity shear force acts on various samples, achieving cleaning, extraction, emulsification, accelerated dissolution, pulverization, and dispersion.

Product Features

• Ultra-Quiet: Lined with three-dimensional environmentally friendly acoustic insulation cotton, noise level below 55dB. A professional third-party noise reduction certification report with CNAS accreditation is available.

• Touchscreen Display: Full-color LCD touchscreen, convenient and fast, real-time display of multiple parameters, clear at a glance.

• Stable and Reliable: Self-excited ultrasonic generator, stable and reliable operation, using imported chips, strong adaptability to load changes, with automatic frequency tracking, multiple automatic protections, and power-off memory function.

• High-Efficiency Cleaning: Zirconium-titanium lead-acid core crystal, high-Q piezoelectric ceramic transducer, high electroacoustic conversion rate, more efficient cleaning.

• Selectable Modes: Ultrasonic cleaning/degassing modes are selectable.

• One-piece stamped inner tank The instrument’s inner tank is made of high-quality 304 stainless steel, integrally stamped, eliminating cleaning dead corners. It features a stainless steel mesh basket and a stainless steel noise-reducing cover for quieter cleaning.

• Flexible parameters: Adjustable cleaning time from 1-999 minutes, adjustable power from 0%-100%, and adjustable temperature from room temperature to 80℃.

• Hydraulic-assisted lid opening: Hydraulic pneumatic support assists in opening the lid, making it more effortless and quieter.

Applications:

* Cleaning of glassware, centrifuge tubes, and other consumables; degassing of liquid reagents; sample crushing, homogenization, and dispersion.

* Thorough cleaning and restoration of luster to watches, precious metals and gemstones, chains, and other jewelry.

* Deep cleaning and removal of dust and grease from precision bearings, oil nozzles, and metal and plastic workpieces.

* Cleaning and disinfection of surgical and dental medical equipment.

* Removal of grease and dust from optical microscope lenses, camera lenses, and quartz precision glassware.
