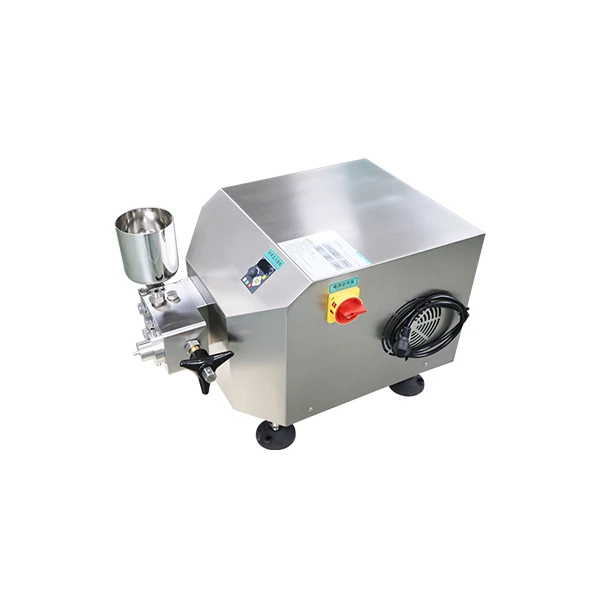

The high-pressure homogenizer is a miniaturized benchtop device for biological sample processing. Equipped with a built-in cooling circulation system, this machine directly cools the homogenizing head and is available with optional homogenizing valves for different applications. It features high pressure, compact size, easy operation, high processing efficiency and large sample output. The processing capacity ranges from 6 to 12 liters per hour, with a maximum working pressure of 1500 bar, an 8-pole motor with a power of 1.5 KW, a power supply of 220 V/50 Hz, a maximum product viscosity of 2000 cP and a maximum product temperature of 90℃.
High pressure milk homogenizer is a special equipment of the liquid material thinning and high pressure transportation. It is composed of stainless steel case, wheel box, pump body, pressure meter, barrel, pressure regulating handle, homogenizer and so on.
Technical Parameters
| Model | SCIENTZ-150(150PS) | SCIENTZ-150A(150APS) |
| Power Supply | 220V/50Hz | 3-Phase 4-Wire 380V/50Hz |
| Flow Rate | 6-12 L/hour | 12-25 L/hour |
| Suction Cycles per Minute | ~140 times | ~140 times |
| Maximum Working Pressure | 1500 bar | 1500 bar |
| Maximum Product Viscosity | 2000 cP | 2000 cP |
| Motor Power | 1.5 KW (8-pole) | 3.0 KW (8-pole) |
| Overall Dimensions | L800W460H450 mm | L840W620H540 mm |
| Maximum Product Temperature | 90°C | 90°C |
| Maximum Steam Temperature | 121°C | 121°C |
| Maximum Feed Particle Size | < 500 μm | < 500 μm |
The homogenizer pressure can’t be changed, the homogenizing head is damaged, and the following is the operation video of replacing the homogenizing head.
