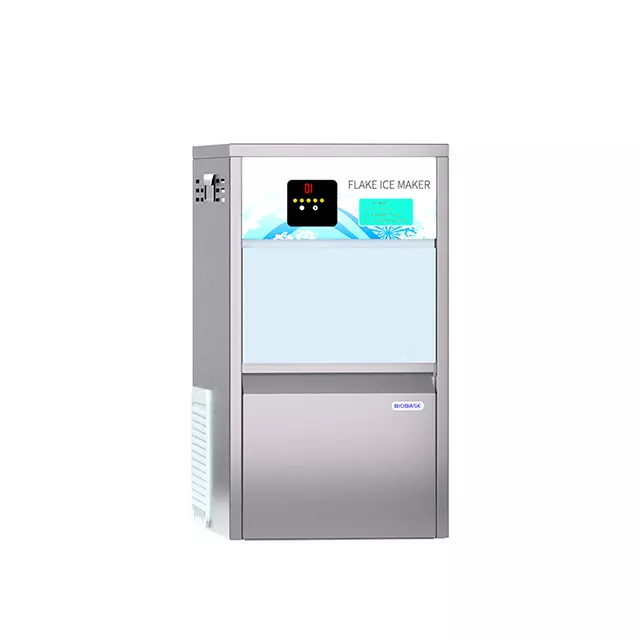

Flake Ice Maker 20kg 30kg

BK-IMS20 BK-IMS30

Flake ice maker is a device that condenses water into ice and then uses a motor to crush the ice. The produced irregular crushed ice can be applied in the catering industry, medical field, food storage, and other areas.

1. Equipped with a high-quality and efficient compressor. Uses environmentally friendly refrigerant with an Ozone Depletion Potential(ODP) of 0.

2. The insulation layer of the inner tank is made of fluorine-free polyurethane foam, offering excellent thermal insulation.

3. The exterior is made of high-quality 304 stainless steel. It features an integrated design, compact structure, and ease of use.

4. The motor shaft has a spiral cutter design, and the ice knife edge is optimized, resulting in smaller ice particles that are versatile and practical.

5. The water tank is designed with a float valve to prevent excess water consumption, saving water and energy.

6. The ice-making evaporator is made of pure copper, and the ice knife is made of 304 stainless steel.

7. It includes protective shutdown features such as ice full, water shortage, compressor fault alarms, and protection against continuous compressor startups.

Technical Parameters:

Model BK-IMS20 BK-IMS30
Ice Making Capacity 20kg/24h 30kg/24h
Max. Ice Storage Capacity 10kg
Water Consumption ≤1.2L/h
Ice Shape Small particle of irregular snow ice
Way of Condensation Air cooling
Ambient Temperature 10~35℃
Water Temperature 2~15℃
Refrigerant R290
Standard Accessory Water inlet pipe*1, drainage pipe*1, ice spoon*1
Optional Accessory Filter
Consumption 300W
Power Supply AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)
External Size(W*D*H) 330*480*605mm
Package Size(W*D*H) 380*570*650mm
Net Weight 26kg
Gross Weight 38kg
