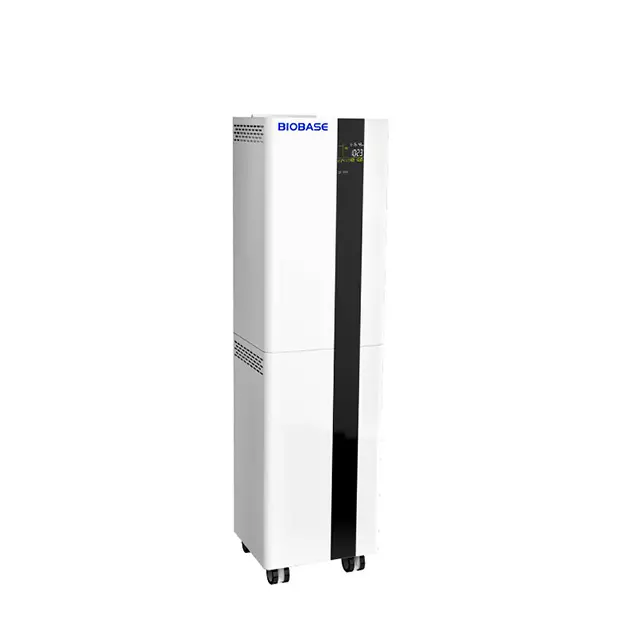

Floor Type Plasma Air Sterilizer

BKB-Y-800-D, BK-Y-1000-D, BKB-G-1600-D

Plasma air sterilizer ‌ is a kind of equipment for disinfection and sterilization using plasma technology. It excites gas molecules to high energy levels through gas discharge, producing a large amount of plasma, which can directly act on microorganisms in the air, killing microorganisms by oxidation, breaking cell membranes and other ways. At the same time, the plasma can also produce certain substances such as ultraviolet light and ozone, further enhancing the bactericidal effect. Compared with the traditional ultraviolet circulating air disinfection machine, this disinfection technology has the advantages of efficient sterilization, environmental protection, efficient degradation, low energy consumption, long service life and lifelong consumables free at one input.

Features:

1. The coexistence of man and machine means that it can be disinfected in a manned environment or in an unmanned environment.

2. LCD touch display, real-time display of indoor temperature and humidity(Humidity only for BKB-G-1600-D).

3. 6 groups of on-off time can be booked within 24 hours, wind speed can be adjusted in three gears.

4. Manual, timing, temporary and automatic working modes(Automatic working mode only for BKB-G-1600-D) are available.

5. With two-section plasma generator, the upper part uses 4000V plasma generator to adsorb dust particles, and the lower part uses 8000V plasma generator to sterilize and disinfect(Mobile type). With plasma generator, fan, negative ion module fault alarm, filter maintenance warning(BKB-G-1600-D). The service life can reach 30000 hours.

6. Built-in high-concentration negative-ion generator, release negative ions to adsorb dust particles in the air and purify the air.

7. The device has two fans and two plasma generators with large air volume and space disinfection capacity(Only for BKB-G-1600-D).

8. Filter is easy to disassemble.

Technical Parameters:

Model BKB-Y-800-D BK-Y-1000-D BKB-G-1600-D
Type Mobile type Floor type
Disinfection Type Plasma and electrostatic adsorption
Applicable Space ≤80m3 ≤100m3 ≤160m3
Circulating Air ≥800m3/h ≥1000m3/h ≥1600m3/h
Shell Material ABS shell Metal shell
Ozone Leakage ≤0.01mg/m³ ≤0.033mg/m3 ≤0.01mg/m³
Plasma Density 3.40*10^17m-3~1.75*10^18m-3 3.49*10^17m-3~8.67*10^17m-3 3.38*10^17m-3~1.84*10^18m-3
Negative Ion Generation ≥5*10^6pcs/cm3
Electric Field Intensity of Sterilization Area 8000V
Electric Field Intensity of Dust Accumulation Area 4000V
Natural Bacteria Extinction Rate ≥90%
Sterilization Rate of Staphylococcus Albus ≥99.9%
Noise ≤55dB(A)
Consumption ≤100W ≤200W
Power Supply AC220V, 50/60Hz(Standard);

AC110V, 50/60Hz(Optional)(External transformer)

External Size(W*D*H) 370*360*710mm 540*410*900mm 370*360*1340mm
Net Weight 20.5kg 23kg 41.8kg
Package Size(W*D*H) 440*430*780mm 574*481*975mm 440*430*1420mm
Gross Weight 25.3kg 28.5kg 47.7kg
