| Item | Recommended Reagent | Application Department |
| Lymphocyte Subset T Analysis | CD45
CD4 CD3 CD8 |
Clinical Laboratory
Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Pediatrics Blood Specialty |
| Lymphocyte Subset T/B/NK Analysis | CD45
CD3 CD16 CD56 CD19 |
|
| Absolute Count of CD4+T Lymphocyte | CD45
CD4 CD3 CD8 |
CDC (AIDS)
Infectious Disease Department |
| Cytokine Th1/Th2/Th17 Analysis | Th1: IL-2, IFN-γ, TNF-α
Th2: IL-4, IL-6, IL-10 Th17: IL-17 |
Infectious Disease Department
Oncology Department Department of Rheumatology and Immunology Department of Organ Transplantation Respiratory Department |
| HLA-B27 Detection for AS | HLA-B27-FITC
HLA-B7-PE IgG2a-FITC IgG1-PE |
Department of Rheumatology and Immunology
Orthopedics |
| DFI Analysis | Acridine orange (AO) Staining Solution | Reproductive Department
Infertility Department Reproductive Medicine Centre |
Technical Parameters:

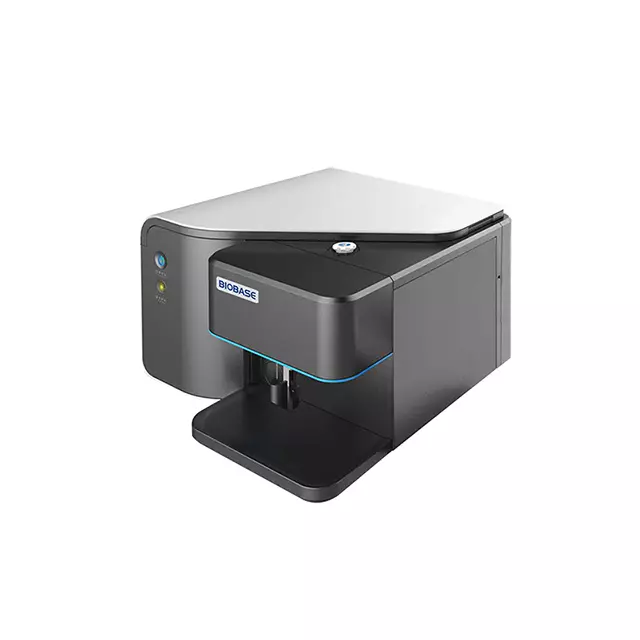

| Model | FlowCyte B7H | FlowCyte B7 |
| Laser | 488nm solid（60mW） | |
| Detector | FSC, SSC, FL1-FL5 | |
| Fluorescence Channel | FL1:525/50（FITC）
FL2:585/40（PE） FL3:630/30（PE-Texas Red/ECD/PI） FL4:697/60（PerCP/PE-Cy5/PE-Cy5.5） FL5:780/60（PE-Cy7） |
|
| Fluorescence Sensitivity | FITC≤50 MESF, PE≤30MESF | |
| Fluorescence Linearity | ≥0.99 | |
| FSC Sensitivity | ≤1μm | |
| Test Particle Size | 0.2~50μm | |
| Carry Over | ≤0.5% | |
| Instrument CV | FSC and all FL channel CV less than 2% | |
| FSC and SSC CV | Can separate red blood cells and platelet, can separate white blood cells into 3 groups | |
| Test Speed | ≥46000 cells/s | |
| Minimum Sample Vol | 90μL | |
| Measure Range | Maximum Support 10⁷ | |
| Threshold | Double threshold, minimum cells fraction | |
| Fluorescence Compensation | Support auto online compensation, offline compensation and visualized compensation | |
| Item Template | Support Item template, acquisition conditions/fluorescence compensation one-click use | |

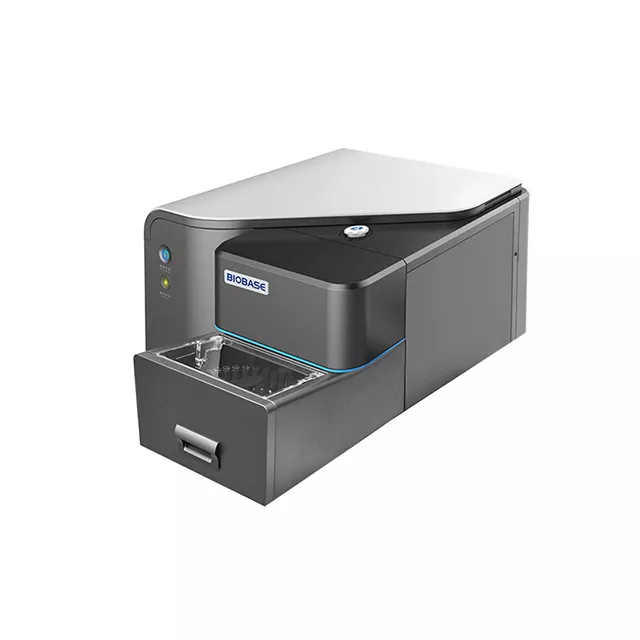

| Intake Method | Manual intake
Rotary wheel auto-sampling with auto-mixing function:32tests/wheel |
|
| Liquid Storage Station | Sheath bottle, waste bottle, shutdown liquid bottle 2L,
cleaning liquid bottle 0.5L |
|
| Software | English/Chinese | |
| PC | Dell（CPU i5/8G DDR4/1T hard disk）+Dell 27 inches monitor | |
| Power Supply | AC220/110V±10%, 50/60Hz | |
| Auto-sampler | / | 32-postions autosampler(Stanndard) |
| External Size(W*D*H) | 430*500*330mm | 650*500*330mm |
| Net Weight | 30kg | 35kg |
| Packing Size(W*D*H) | Main Instrument: 860*635*648mm
Accessories: 860*680*810mm Reagent: 405*270*400mm |
|
| Gross Weight | Main Instrument: 56kg
Accessories: 54kg Reagent: 16kg |
|
