Application:
1. Hot air oven is suitable for baking chemical gas and food (meat, aquatic products, fruits and vegetables) for processing to-be-baked items
2.Ink curing, drying of paint film, etc.
3.Widely used in precision baking, drying and tempering of electronics, electrical machinery, communication, electroplating, plastics, hardware chemicals, instruments, printing, pharmaceuticals, PC boards, powders, impregnation, spray coating, glass, wood construction materials, etc. , Preheating, shaping, processing, etc .
Features:
1.Heat-resistant fan, can work continuously
2.Three fans for ventilation and heating, higher heat resistance and higher drying efficiency.
3.Finned heating tube with larger contact area and higher heating efficiency.
Advantages:
1.All operations using the button operation, that is simple and safe.
2.The door edge USES the thick sealing strip, prevents the heat effectively to lose.
3.Three gales blow heat from the heating pipes evenly to each layer.
4.Automatic door suction, can firmly close the door.
5.Food grade stainless steel net dish, accord with hygiene and safety standard.

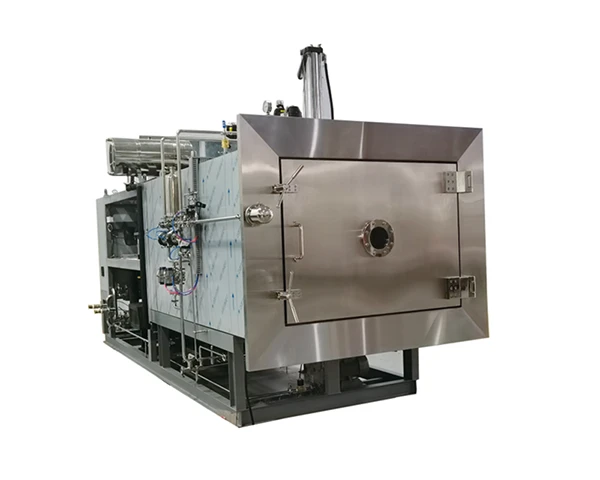

Working principle
After some pretreatments, in a low temperature and vacuum surroundings, the inner moisture of the foodstuff will sublimate from solid state to gaseous state so that the foodstuff is dried.
The whole processing line including the following parts
1. pretreatment system
2. freezing and drying tank
3. heating system
4. vacuum system
5. refrigeration system
6. material conveyor
7. control system
Medels
SCIENTZ
| SCIENTZ Parameter
Model |
Drying area (m²) | Approx capacity
(kg/batch) |
Average moisture output(kg/h) | Tray size (mm) | Tray qty (pcs) | Heating pot size (m) | Operation vacuum (pa) | Heating plate temp.
(°C) |
Power (kw) |
| SCIENTZ-0.5 | 6 | 0.5 | 310*550*35 | 3 | Φ0.5*1.2 | 133-13 | Normal temp. to +120 | 9 | |
| SCIENTZ-2.0 | 2 | 24 | 2.4 | 540*460*30 | 8 | Φ0.7*2.0 | 13 | ||
| SCIENTZ-5.0 | 5 | 60 | 6 | 780*540*30 | 12 | Φ0.8*2.7 | 22 | ||
| SCIENTZ-7.0 | 7 | 84 | 7 | 545*635*35 | 21 | Φ1.1×3.8 | 39 | ||
| SCIENTZ-10 | 10 | 120 | 12 | 745*635*30 | 21 | Φ1.4*2.1 | 55.8 | ||
| SCIENTZ-20 | 20 | 240 | 20 | 700*460*30 | 60 | Φ1.8*2.6 | 104.5 | ||
| SCIENTZ-25 | 25 | 300 | 25 | 680*460*30 | 80 | Φ1.8*4.1 | 122 | ||
| SCIENTZ-50 | 50 | 600 | 50 | 540*635*30 | 144 | Φ2.4*4.8 | 33+100.5 | ||
| SC-100 | 100 | 1200 | 100 | 288 | Φ2.4*8.9 | 61+176 | |||
| FDG-200 | 200 | 2400 | 200 | 576 | Φ2.4*16.6 | 98+340 |
