Networking of the gene importer system. General intelligent instrumentation has two-way communication functions, but this two-way communication function is far from the true network communication.
Along with the rapid development of network technology, Internet technology enables the gene importer to realize network at the same time on the basis of intelligentization, so that the on-site measurement and control parameters are close to the network and have the necessary information processing functions.
Performance Features:
■Integration of the whole machine, simple operation, direct display
■The microprocessor control of pulse discharge
■The log storage
■Unlimited custom program storage
■Simple operation, short conversion time
■High conversion efficiency
■repeat ability
Import method
Sticky end connection
Flat end connection
Artificial joint method
Homologous polytail junction
Main Technical Parameters:

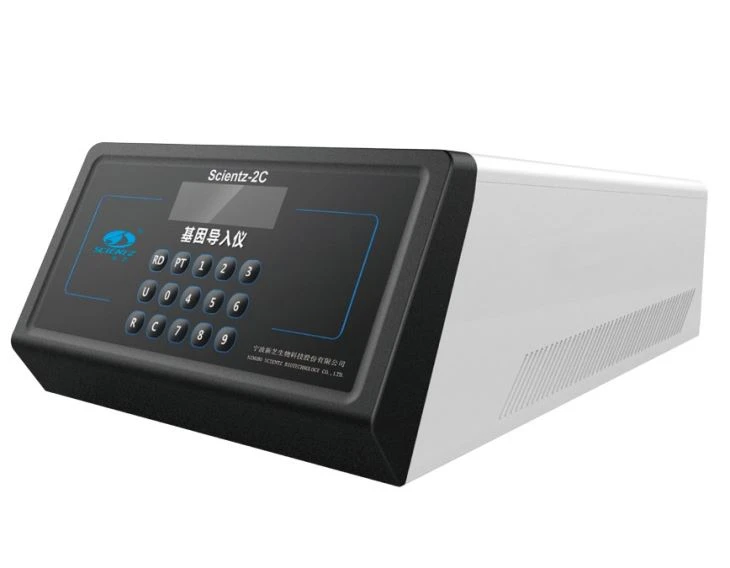

| Model | Scientz-2C |
| Pulse form | Exponential decay |
| High Output voltage | 400-2500 VAC |
| Low output voltage | 100-450 VAC |
| High voltage capacitor | 1、5、6、25、30、31UF |
| Low voltage capacitor | 100UF，125UF，150UF…1675UF，one grades of 25UF |
| Resistance | 50、100、150、1600；-∞total 30 grades |
| Operationg system | Microcomputer control |
| Output waveform | With RC time constant of the exponential decay of wave |
| Dimension | 36.8×31.6×22.9(cm) |
| Weight | 10.5Kg |
| Packing size | 480×420×280mm |
