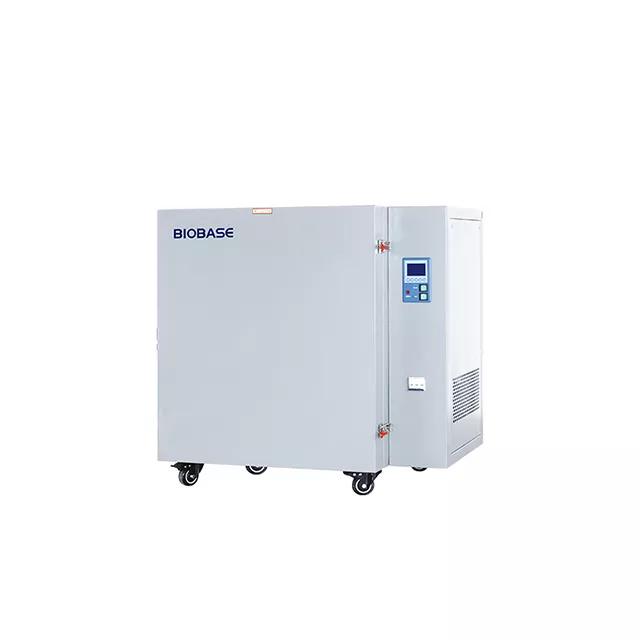

BOV-H50, BOV-H100, BOV-H226
The High Temperature Drying Oven is an advanced laboratory oven designed for precise drying, curing, and heat treatment applications at elevated temperatures. It is ideal for use in industries such as materials research, electronics, and manufacturing, where controlled drying and heat processes are critical.
Features:
1. Outer material: cold-rolled steel plate sprayed on the surface; inner material: SUS stainless steel plate.
2. PID microprocessor temperature control, precise and reliable temperature control.
3. The inner box is designed with a circular arc structure, which is easy to clean.
4. Optional printer or RS485 interface for software connection(For BOV-H50/100).
Technical Parameters:
| Model | BOV-H50 | BOV-H100 | BOV-H226 |
| Capacity | 50L | 100L | 226L |
| Temp. Range | RT+20~400℃ | 50~500℃ | |
| Temp. Precision | 0.1℃ | ||
| Temp. Fluctuation | ±0.5℃ | ±1℃ | |
| Temp. Fluctuation | ±3.0% | ±3.5% | |
| Timing Range | 0~5999min | 0~9999min | |
| Display | LCD | LED | |
| Alarm | Over-temperature alarm, temperature probe damage alarm | ||
| Material | External cold-rolled steel with painting, internal stainless steel | ||
| Ambient Temp. | 5~40℃ | ||
| Power Supply | AC380V, 50/60Hz | ||
| Consumption | 3250W | 4050W | 8000W |
| Shelves | 2pcs | 3pcs | |
| Optional Accessories | Printer/RS485/USB | / | |
| Internal Size(W*D*H) | 350*350*400mm | 450*450*450mm | 602*500*753mm |
| External Size(W*D*H) | 890*700*920mm | 990*790*990mm | 1070*770*1122mm |
| Package Size(W*D*H) | 1010*820*1150mm | 1100*920*1210mm | 1200*890*1280mm |
| Net Weight | 153kg | 180kg | 174kg |
| Gross Weight | 198kg | 247kg | 204kg |
