Features:
1. The cleaning agent is automatically and quantitatively added by peristaltic pump.
2. PLC micro-computer control, self-setting cleaning procedures, automatic operation, with audit tracking, three-level authority, automatic alarm and other management, monitoring functions.
3. Two water inlets controlled by electromagnetic valve, users can choose the tap water and pure water in wash and rinse phase.
4. Pure water inlet adopts built-in booster pump, which can directly inhale pure water without external booster.
5. With overflow protection, if there is too much water in cleaning chamber, the program will been stopped after alarm, and the water will be automatically drained at the same time.
6. Independent drainage pump, with the water seal design of the drainage pipeline to prevent the back flow of sewage.
7. The cleaning agent shortage reminder function, which can remind operators to add cleaning agent in time.

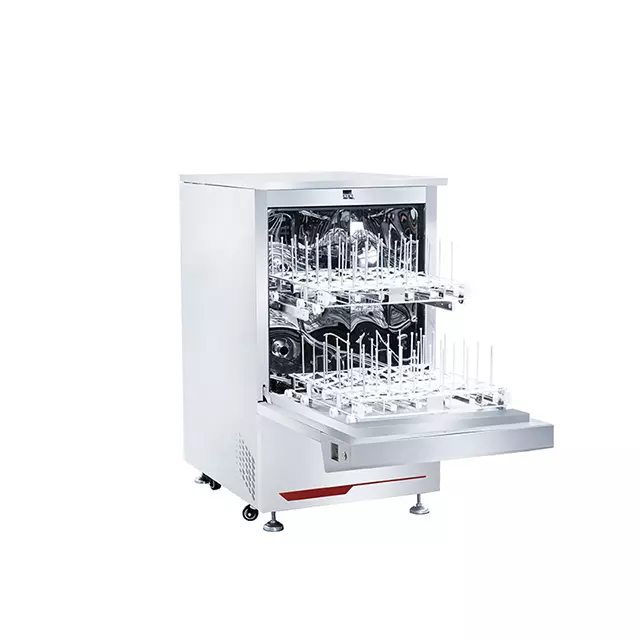

Cleaning Racks:
Technical Parameters:

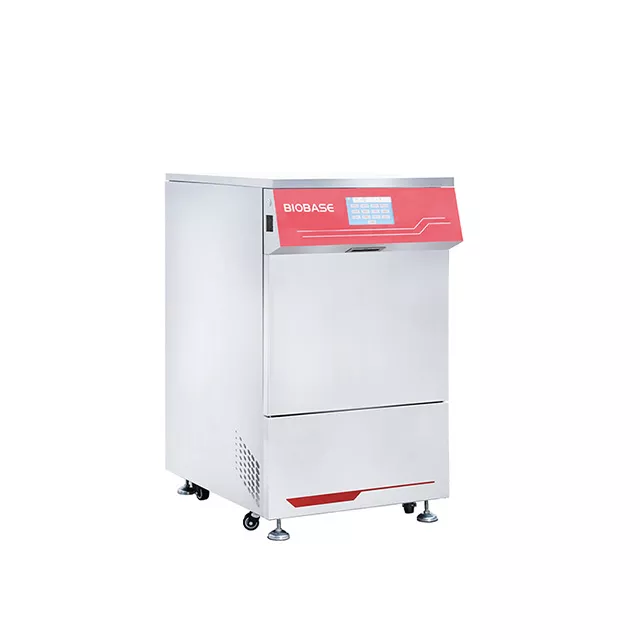

| Model |
BK-LW200A |
| Cleaning |
Capacity |
200L |
| Washer Load Level |
2 |
| Water Wash Power |
0.75KW |
| Water Heater Power |
3KW |
| MAX. Power |
4KW |
| Water Consumption/Step |
15L |
| Tank Internal Temperature |
0~99℃ |
| Water Supply Pressure |
0.3~1.0Mpa |
| Peristaltic Pump for Cleaning Agent |
2 independent pumps control detergent agent and neutralizing agent |
| Cleaning Agent Level Sensor |
YES |
| Washing Pump |
Sweden 430L/min |
| Standard Cleaning Racks |
BKIR36A*2 |
| Drying |
Drying Function |
NO |
| Steam Condenser |
NO |
| Dry Power |
NO |
| Control System and Traceability |
Control System |
7″ color LCD touch screen display, microprocessor |
| Cleaning Program |
12 pre-set programs(editable)+99 PLC free programming |
| Password Protection |
3 levels password |
| Safety Emergency Button |
NO |
| USB Port |
YES |
| Integrated Printer |
NO |
| Online Monitor Performance of Washing |
NO |
| Dimensions&Weight |
Chamber Dimension(W*D*H) |
526*542*645mm |
| Exterior Dimension(W*D*H) |
600*860*1040mm |
| Package Dimension(W*D*H) |
720*980*1230mm |
| Net Weight(Host only) |
125kg |
| Gross Weight(Host with rack) |
165kg |
| Others |
Door |
Foam SS door |
| Safety Door Lock |
YES |
| Built-in RO Water Pump |
YES |
| Noise |
<50dB |
| Power Supply |
AC220V, 50Hz(Standard);
AC220V, 60Hz; 110V, 50/60Hz(Optional) |
