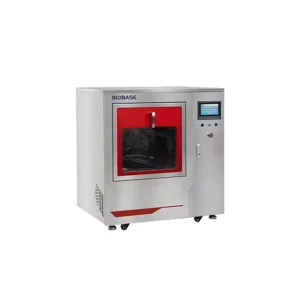

Lab Automatic Glassware Washer(Washer Disinfector)

Introducton:
The lab glassware washers integrate programmed cleaning, disinfecting and drying functions to clean all glassware stuff, for beaker, flask, pipette, petri dish, burette, measuring cylinder, test tube etc.

  • BK-LW120, BK-LW220, BK-LW320
  • BIOBASE



Features:

1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program.

2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and  drying process.

3. Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃.

4. Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process.

5. PLC touch screen control with preset 12 programs and 99 cutomized programs.

6. Safety protection—electronic security door lock to prevent unexpected door opening, water & drying air temperature dual control and equipped with emergency switch.

Standard Washing Procedure (can be self-designed by the user):

Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying

Lab Automatic Glassware Washer(Washer Disinfector)


Technical Parameters:

Model BK-LW120 BK-LW220 BK-LW320
Capacity 120L 220L 320L
Water Consumption/Cycle 17L 20L 22L
Inlet Water Pressure 0.3~0.8Mpa
Noise ≤50dB ≤55dB
Material Internal material: SS316, Outer material: SS304
Overall Power Consumption 6KW 6/17KW
Power Consumption-Water Washing 0.75KW 1.5 KW
Power Consumption-Water Heating 5KW 5/15KW
Power Consumption-Drying 3KW 3.6KW
Power Supply AC220V, 50Hz(Standard);

110V, 60Hz(Optional)

AC220V, 50Hz; 380V, 50Hz(Standard);

110V, 60Hz(Optional)

Cleaning Racks 1pc 2pcs 3pcs
Standard Cleaning Racks BKIR36*1 BKIR36*2 BKIR36*3
Standard Accessories USB interface
Optional Accessories Cleaning racks
Washer Chamber Size(W*D*H)mm 600*629*465 600*629*690 600*629*820
External Size(W*D*H)mm 980*740*870 690*790*1820 690*790*1970
Package Size(W*D*H)mm 1060*940*1030 790*940*1990 790*940*2100
Gross Weight(kg) 203 300 320
