Features:
1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program.
2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and drying process.
3. Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃.
4. Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process.
5. PLC touch screen control with preset 12 programs and 99 cutomized programs.
6. Safety protection—electronic security door lock to prevent unexpected door opening, water&drying air temperature dual control and equipped with emergency switch.
Standard Washing Procedure(can be self-designed by the user):
Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying

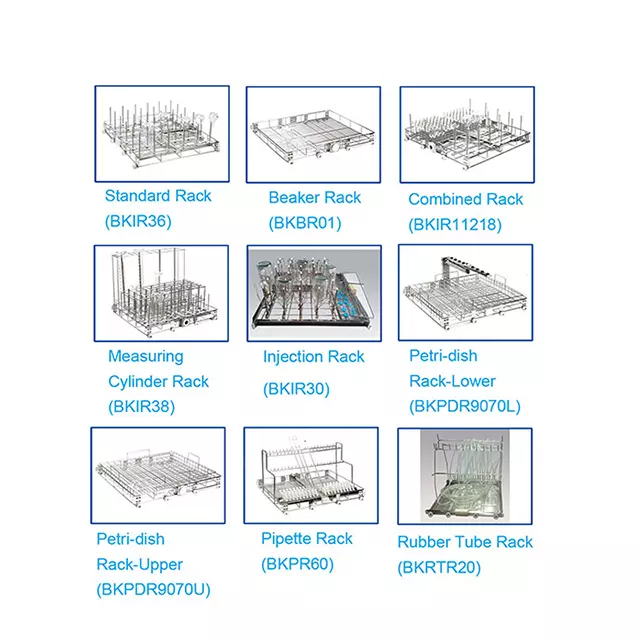

ALL cleaning racks can be removed completely, convenient to washing rack pipeline:
Technical Parameters:
| Model |
BK-LW120 |
BK-LW220 |
BK-LW320 |
| Cleaning |
Capacity |
120L |
220L |
320L |
| Washer Load Level |
1 |
2 |
3 |
| Water Wash Power |
0.75KW |
0.75KW |
1.5KW |
| Water Heater Power |
5KW |
5KW |
15KW |
5KW |
15KW |
| MAX. Power |
6KW |
6KW |
16KW |
7KW |
17KW |
| Water Consumption/Step |
17L |
20L |
22L |
| Tank Internal Temperature |
0~99℃ |
| Water Supply Pressure |
0.3~1.0Mpa |
| Peristaltic Pump for Cleaning Agent |
2 independent pumps control detergent agent and neutralizing agent |
| Cleaning Agent Level Sensor |
YES |
| Washing Pump |
Sweden 430L/min |
Sweden 800L/min |
Sweden 1000L/min |
| Standard Cleaning Racks |
BKIR36*1 |
BKIR36*2 |
BKIR36*3 |
| Drying |
Drying Function |
YES |
| Steam Condenser |
YES |
| Dry Power |
3KW |
3.6KW |
3.6KW |
| Control System and Traceability |
Control System |
7″ color LCD touch screen display, microprocessor |
| Cleaning Program |
12 pre-set programs(editable)+99 PLC free programming |
| Password Protection |
3 levels password |
| Safety Emergency Button |
YES |
| USB Port |
YES |
| Integrated Printer |
Optional |
| Online Monitor Performance of Washing |
Optional |
| Dimensions&Weight |
Chamber Dimension(W*D*H) |
600*629*539mm |
600*629*754mm |
600*629*915mm |
| Exterior Dimension(W*D*H) |
980*740*870mm |
695*870*1820mm |
695*870*1990mm |
| Package Dimension(W*D*H) |
1110*940*1075mm |
810*990*2015mm |
810*990*2185mm |
| Net Weight(Host only) |
169kg |
220kg |
237kg |
| Gross Weight(Host with rack) |
200kg |
300kg |
320kg |
| Others |
Door |
Double-layered glass door |
| Safety Door Lock |
YES |
| Built-in RO Water Pump |
YES |
| Noise |
<50dB |
<55dB |
<55dB |
| Power Supply |
AC220V, 50Hz(Standard);
AC110V, 50/60Hz; 220V, 60Hz(Optional) |
AC220V, 50Hz; 380V, 50Hz(Standard);
AC110V, 50/60Hz; AC220V, 60Hz; 220V, 60Hz(Three phase), 380V, 60Hz(Optional) |
