Features:
1. Exterior material is powder-coated carbon steel, interior material is mirror finished stainless steel.
2. The temperature is controlled by a ‘Super Fuzzy PID’ system, featuring smaller overshoot, faster stabilization time, and better temperature control accuracy.
3. High-quality DC brushless motor features minimal vibration, low noise, high efficiency, maintenance-free operation, energy saving, and long-lasting performance. Equipped with single-axis balanced drive technology for ultra-low silent operation.
4. Equipped with over/under temperature alarms and abnormal shutdown alarms.
5. Automatic audio and visual alarms are triggered in case of shaker(Motor) malfunction or if the door is not properly closed.
6. The motor rotation direction can be set to forward, reverse, or alternating forward/reverse.
7. Programmed mode, which allows for multi-stage settings, and constant mode, which runs continuously at the set temperature and speed after configuration.
Technical Parameters:
| Model |
BJPX-SL220-LI |
| Capacity |
610L |
| Temperature Control Range |
4~60℃ |
| Temperature Control Accuracy |
0.1℃ |
| Temperature Uniformity |
≤±1℃(@37℃) |
| Temperature Fluctuation |
≤±0.5℃ |
| Ambient Temperature |
15~35℃ |
| Timing Range |
0~999min(h) |
| Control Mode |
PID microcomputer control |
| Display |
LCD touch screen |
| Circulation Mode |
Forced convection |
| Oscillation Mode |
Rotary shaking |
| Speed Range |
30~300rpm |
| Speed Accuracy |
±1rpm |
| Swing Amplitude of The Plate |
φ26mm |
| Refrigerant |
R290/150g |
| Standard Capacity |
250ml*64/500ml*48(Default shipping configuration)/1000ml*32/2000ml*20/3000ml*16/5000*12 |
| Max. Capacity |

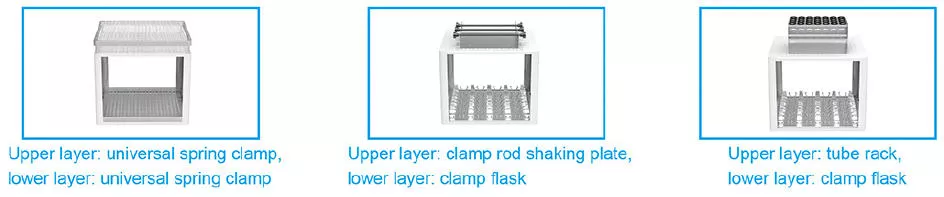

Clamp flask: 50ml*162/100ml*124/150ml*104/250ml*86/500ml*64/1000ml*32/2000ml*20/3000ml*16/5000ml*12
Tube rack*6
96-well plate*30
Clamp rod shaking plate*4
Horizontal thermostatic shaker spring plate*2 |
| Defrost Function |
Automatic defrosting |
| Consumption |
1500W |
| Power Supply |
AC220V, 50Hz(Standard); 110V, 60Hz(Optional) |
| Shelf |
970*460mm*2 |
| Standard Accessory |
UV light*1, LED light*1 |
| Optional Accessory |
Printer, USB interface |
| Internal Size(W*D*H) |
1198*520*990mm |
| External Size(W*D*H) |
1303*793*1564mm |
| Package Size(W*D*H) |
1450*980*1750mm |
| Net Weight |
550kg |
| Gross Weight |
580kg |
