New Type General Purpose Touch Display Universal Ultrasonic Generator Homogenizer

new type touch display ultrasonic homogenizer

Professional R&D sonicator homogenizer, central microcor centralized control, support OEM.

Amazing Selection & Great Prices! Ultrasonic Homogenizers from $1100. Low, Flat-Rate Shipping.The Homogenizer Experts.Generate Quotes Online.Up to 40% Off.

Perfect production process Reliable after-sales service, 1 year warranty, provide sample.

1)As a new type of ultrasonic homogenizer,it enjoys complete functions, novel appearance and reliable performance.

2)It has a large-screen display and concentrated control by a central computer.

3)The ultrasonic time and power can be set accordingly. Besides, such functions as sample temperature display, actual

frequency display, computerized tracking and automatic trouble warning can all be displayed in the large LCD screen.

Main Technical Parameters

MODEL	Scientz-IID
Frequency	20-25KHz
Power	950W
Sccessories (Ø)	Ø6
Optional Tip (Ø)	Ø2,3,10,15
Crushing Capacity	0.5-600ml
Duty Ratio (%)	0.1-99.9%
Supply	220/110V 50Hz/60Hz
Features	Using PWM control switching power supply. Power continuously adjustable. Stability. Can store 50 set experimental parameters.
Power supply chassis Size and Weight	400280220mm;12.2 Kg
Mainframe Weight	14.3kg
Speaker compartment Size & weight	275250480mm),8.04 Kg
Packing Size	534295435mm

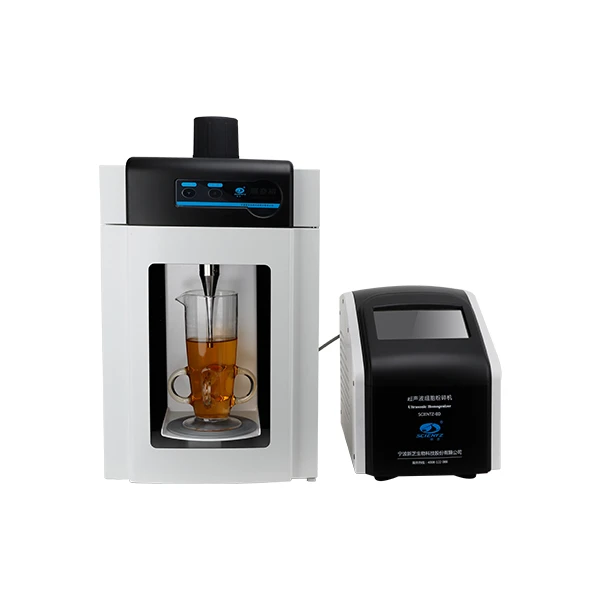

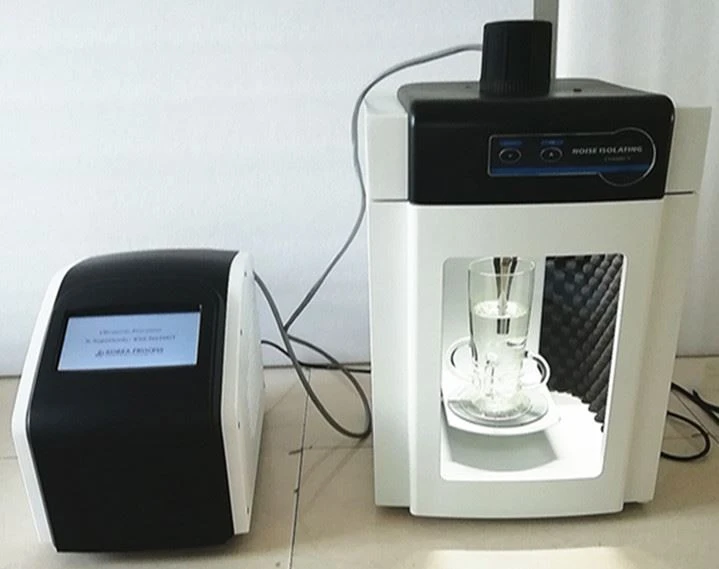

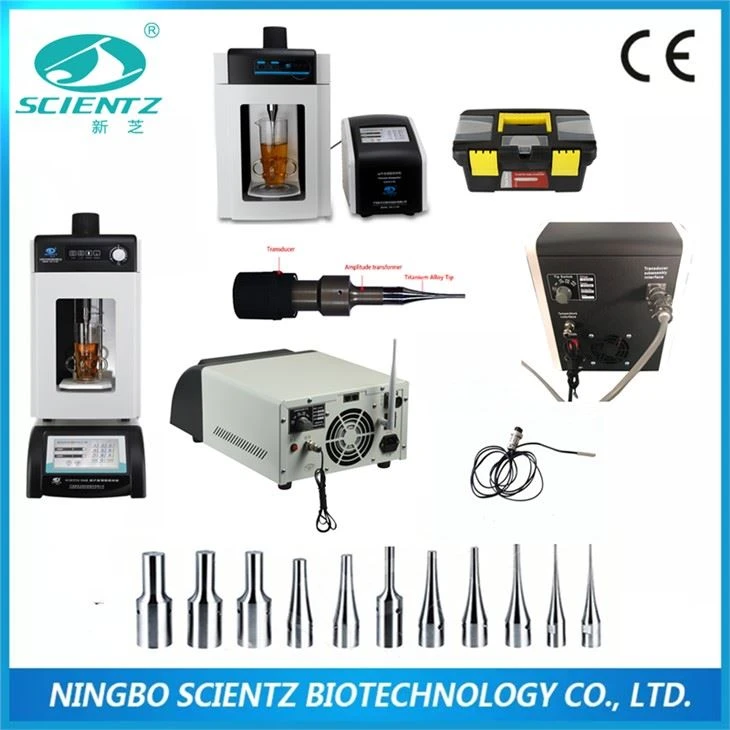

Product Photo

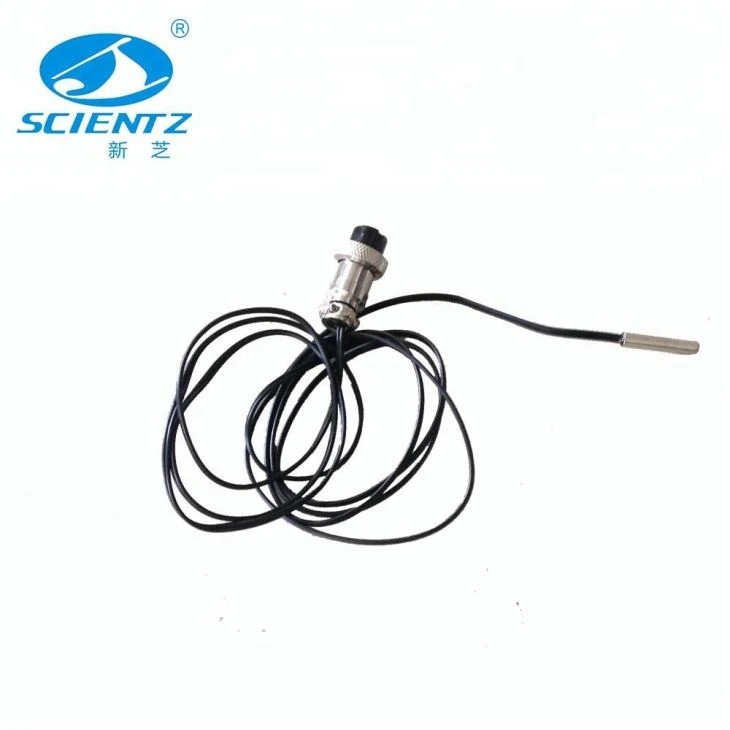

Temperature probe

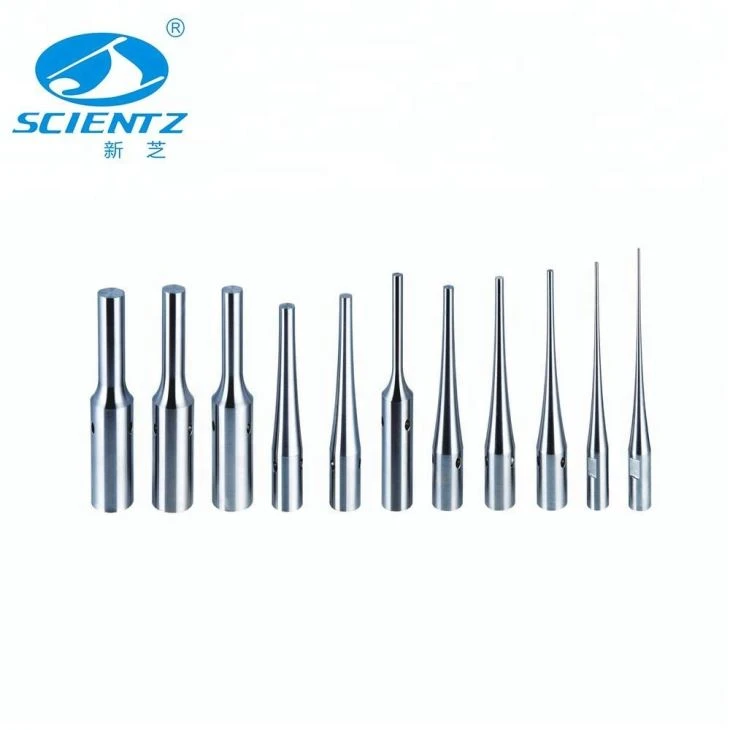

Titanium Alloy Tips/Probe/Horn size reference value

Tip Model		Frequency(KHZ)	Power Range	Crushing Capacity
Φ2	1/12″	20-25KHz	20-250W	0.5-5ml
Φ3	1/8″	20-25KHz	30-400W	3-10ml
Φ6	1/4″	20-25KHz	60-650W	10-100ml
Φ10	5/12″	20-25KHz/19.5-20.5KHz	100-950W	100-200ml
Φ12	1/2″	20-25KHz	100-950W	100-200ml
Φ15	5/8″	20-25KHz/19.5-20.5KHz	200-950W	200-500ml
Φ18	3/4″	20-25KHz	200-950W	200-500ml
Φ20	3/4″	19.5-20.5KHz	400-1200W	500-1000ml
Φ25	1″	19.5-20.5KHz	800-1800W	500-1200ml
