Ningbo Scientz Biotechnology Co.,Ltd. is one of the leading portable ultrasonic cell crusher suppliers in China. Welcome to buy our quality and cheap products for sale in bulk. We also welcome wholesale orders and customized orders. Now, please be free to check the price list with our factory.
Welcome to buy our quality and cheap portable ultrasonic cell crusher for sale in bulk. As one of the leading Ultrasonic Homogenizer suppliers in China, we also welcome wholesale orders and customized orders. Now, please be free to check the price list with our factory.

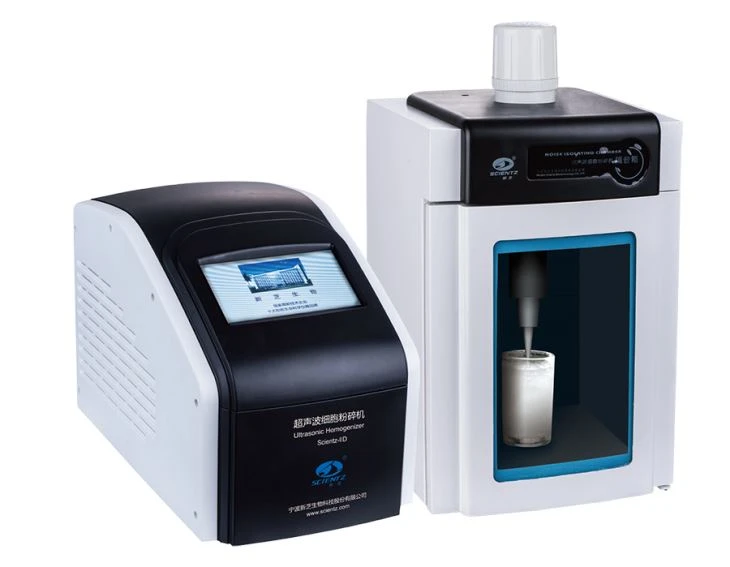

ultrasonic crushing instrument Ultrasonic cell crusher, also known as ultrasonic microwave synergistic extractor, ultrasonic cell cracker, ultrasonic nano material crusher.
1. The principle of ultrasonic cell disruption is not too mysterious and complicated. Simply put, the electric energy is converted into sound energy through the transducer. This energy is turned into a dense small bubble through the liquid medium. These small bubbles burst rapidly and produce the same energy as a small bomb, thus breaking the cell. The role of substances. Ultrasonic cell disruption instrument has the functions of crushing tissues, bacteria, viruses, spores and other cell structures, homogenization, emulsification, mixing, degassing, disintegration and dispersion, leaching and extraction, accelerating the reaction, etc., so it is widely used in biology, medicine, Laboratory research and enterprise production in chemical, pharmaceutical, food, cosmetics, environmental protection, etc. The ultrasonic cell disruptor consists of two parts: an ultrasonic generator and a transducer (some are equipped with a soundproof box). 1. Ultrasonic generator. The signal generator generates a signal of a specific frequency, which is the frequency of the transducer. The ultrasonic frequencies generally used in the ultrasonic device are 20KHz, 25KHz, 28KHz, 33KHz, 40KHz, 60KHz.
2. The transducer assembly. The transducer assembly consists primarily of a transducer and a horn. 3, soundproof box. Can effectively reduce the noise generated during work
Features：
1.With new software，central microcomputer centralized control
1. It adopts 7 inch TFT touch screen display
2. Ultrasonic power step with 1% continuous adjustable.
3. With pulse and continuous operation, and with test function
4. Ultrasonic time, gap time, and total time can be accurate to 0.1 seconds.
Main Technical Parameters：
| Model | JY96-IIN | JY88-IIN | JY92-IIN | JY92-IIDN |
| Frequency | 20-25 KHz | 20-25 KHz | 20-25 KHz | 20-25 KHz |
| Display | LCD | LCD | LCD | LCD |
| Adjustable Power range | 150 W（5%-99%） | 650 W（5%-99%） | 900 W（1%-99%） | 900 W（1%-99%） |
| Accompany Tip (Φ) | 6 mm | 6 mm | 6 mm | 6 mm |
| Optional Tip (Φ) | 3 mm | 3 mm | 2、3、10、12、15 mm | 2、3、10、12、15 mm |
| Processing Volume | 10-100 ml | 10-200 ml | 0.5-500 ml | 0.5-600 ml |
| Duty Ratio | 1-99 % | 1-99 % | 1-99% | 0.1-99.9% |
| Temperature Alarm | No | No | No | 0.1-99℃（Prevent sample overheating） |
| Alarm | time，overload | time，overload | time，overload | time，temperature、overload |
| Power Supply | 220/110V 50Hz/60Hz | 220/110V 50Hz/60Hz | 220/110V 50Hz/60Hz | 220/110V 50Hz/60Hz |
| The size of Power Supply Chassis | 430*255*300（mm） | 430*255*300（mm） | 430*255*300（mm） | 430*255*300（mm） |
| The weight(The host and transducer) | 9．3 Kg | 9.8 Kg | 14 Kg | 14.2 Kg |
| The size of Sound Abating trap | 345*340*570mm | 345*340*570mm | 345*340*570mm | 345*340*570mm |
