◣Features：
1. It adopts PWM control switch power supply, and the power is continuously adjustable
2. It adopts 7 inch TFT touch screen display, high resolution
3. Central microcomputer centralized control
4. Ultrasonic time, power arbitrary setting

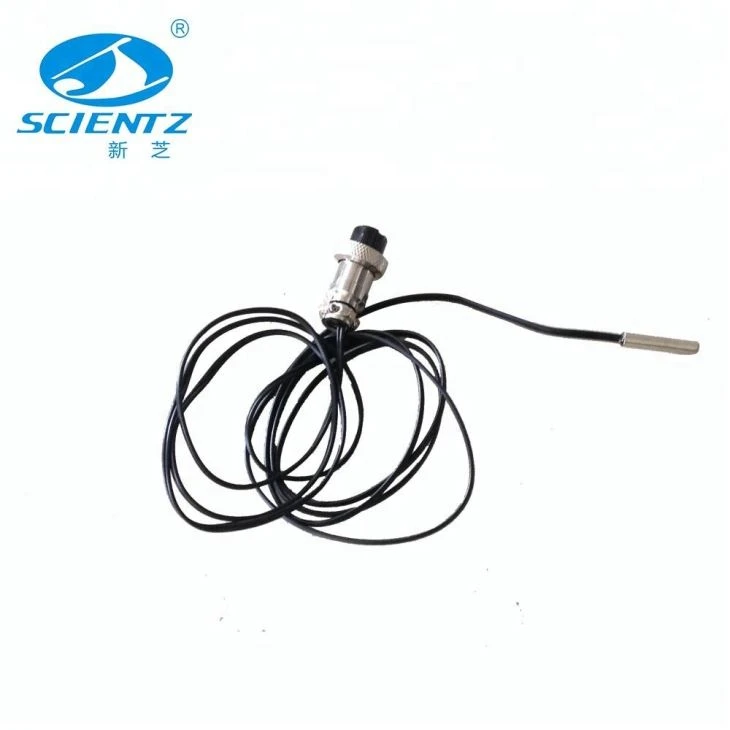

5. Sample temperature detection display, power display,microcomputer tracking,automatic fault alarm

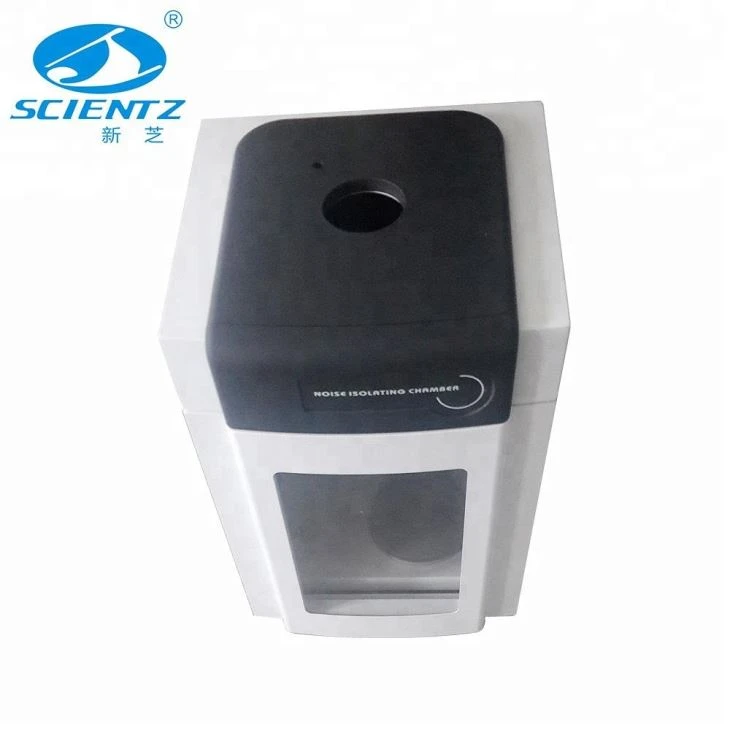

6. Sound Abating trap adopts sheet metal,spray plastic,ABS material,die design,with lock function.
◣Application area:
It can be used for the dispersion and extraction of Chinese herbal medicines. It can be used for the dispersion, homogenization and acceleration reaction of other samples, and also for sample pretreatment in chemical, medical, archaeological, geological and Marine Fields
Herbal extraction – using ultrasonic dispersion to destroy plant tissue, accelerate the penetration of solvent into tissue, and improve the extraction rate of active ingredients in Chinese herbal medicine. For example, all alkaloids in the bark of the cinchona can be invaded by the general method for more than 5 hours, and the ultrasonic dispersion can be completed in half an hour.
Preparation of Vaccines – After killing cells or viruses by means of ultrasonic dispersion, a vaccine is prepared by an appropriate method.
◣Main Technical Parameters
| Parameters | Specifications |
|---|---|
| Frequency | 20-25KHZ automatic tracking |
| Power | 950W (1%-99%) |
| Display | 7 inch TFT touch screen |
| Display content | Time, Power, Temperature |
| Processing volume | 0.5-600ml |
| Duty Ratio | 0.1-99.9% |
| Standard Tip | Φ6mm |

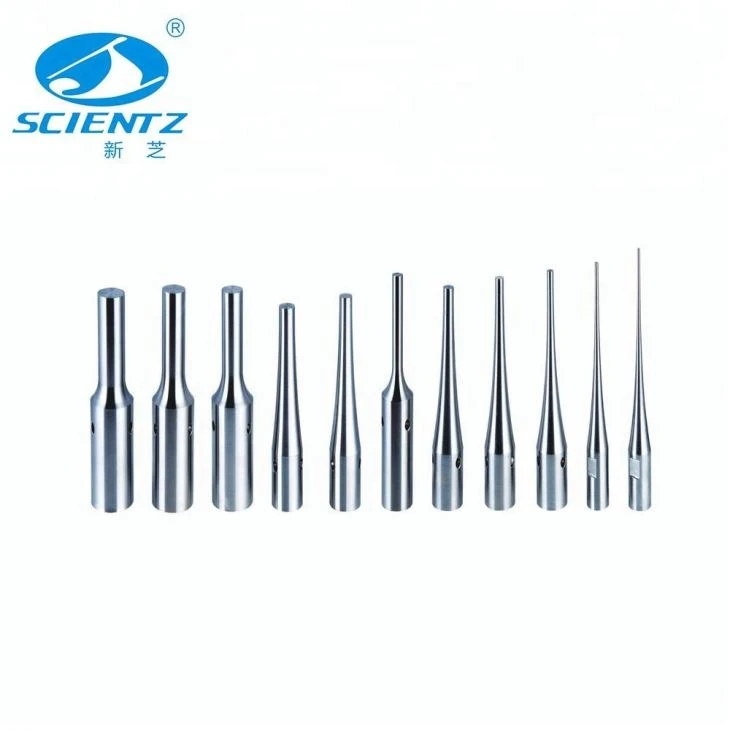

| Optional Tip | Φ2, 3, 10, 15mm |
| Storage data | 50 groups |
| Temperature alarm | 0-99℃ |
| Alarm | Over-temperature, Overload, and overtime |
| Timing | 0-999min |
| Working mode | Gap/Continuity |
| Standard configuration | Generator host 1pc, Sealed transducer 1pc, Φ6mm Tip 1pc, Sound Abating trap 1pc |
