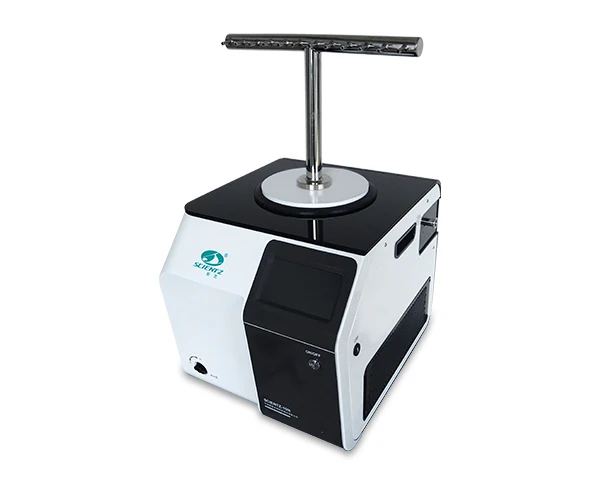

Scientz-10NDElectric Heating Freeze-Drying Machine
| Scientz-10ND | Ordinary | Top-Press | OrdinaryMulti-Manifolds | Top-PressMulti-Manifolds |
| No-load Temperature | <-56℃ | <-56℃ | <-56℃ | <-56℃ |
| Temperature range | -56℃-50℃ | -56℃-50℃ | -56℃-50℃ | -56℃-50℃ |
| Freeze Area | 0.12 m2 | 0.076 m2 | 0.12 m2 | 0.076 m2 |
| Plate Load Capacity | 1.5 L | 1 L | 1.5 L | 1 L |
| Ability to Capture Water | 3Kg | 3 Kg | 3 Kg | 3 Kg |
| Vacuum Degree | <10Pa | <10Pa | <10Pa | <10Pa |
| Machine Dimension | W450×D580×H(380+450) mm | W450×D580×H(380+450) mm | W450×D580×H(380+450) mm | W450×D580×H(380+450) mm |
| Sample Tray Size | 4×Φ200mm | Ø 3×180 mm | 4×Φ200mm | Ø 3×180 mm |
| Power | 950W | 950W | 950W | 950W |
| Power Supply | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz |
| interlayer spacing | 70 mm | 70 mm | 70 mm | 70 mm |
| Cold trap size | Ø215×160 mm | Ø215×160 mm | Ø215×160 mm | Ø215×160 mm |
| The number of Schering bottles | Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
| Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 | |
| Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 | |
| N.W./ G.W | 90KG/ 105KG | 95KG/110KG | 105KG/120KG | 110KG/125KG |
Scientz-12ND Electric Heating Freeze-Drying Machine
| Scientz-12ND | Ordinary | Top-Press | OrdinaryMulti-Manifolds | Top-PressMulti-Manifolds |
| No-load Temperature | <-56℃ | <-56℃ | <-56℃ | <-56℃ |
| Temperature range | -56℃-50℃ | -56℃-50℃ | -56℃-50℃ | -56℃-50℃ |
| Freeze Area | 0.12 m2 | 0.076 m2 | 0.12 m2 | 0.076 m2 |
| Plate Load Capacity | 1.5 L | 1 L | 1.5 L | 1 L |
| Ability to Capture Water | 4Kg | 4Kg | 4Kg | 4Kg |
| Vacuum Degree | <10Pa | <10Pa | <10Pa | <10Pa |
| Machine Dimension | W600×D460×H(730+450) mm | W600×D460×H(730+450) mm | W600×D460×H(730+450) mm | W600×D460×H(730+450) mm |
| Sample Tray Size | 4×Φ200mm | Ø 3×180 mm | 4×Φ200mm | Ø 3×180 mm |
| Power | 950W | 950W | 950W | 950W |
| Power Supply | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz |
| interlayer spacing | 70 mm | 70 mm | 70 mm | 70 mm |
| Cold trap size | Ø215×160 mm | Ø215×160 mm | Ø215×216 mm | Ø215×216 mm |
| The number of Schering bottles | Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
| Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 | |
| Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 | |
| N.W./ G.W | 120KG/135KG | 125KG/140KG | 135KG/150KG | 140KG/155KG |
Scientz-18ND Electric Heating Freeze-Drying Machine
| Scientz-18ND | Ordinary | Top-Press | OrdinaryMulti-Manifolds | Top-PressMulti-Manifolds |
| No-load Temperature | <-56℃ | <-56℃ | <-56℃ | <-56℃ |
| Temperature range | -56℃-50℃ | -56℃-50℃ | -56℃-50℃ | -56℃-50℃ |
| Freeze Area | 0.18 m2 | 0.09 m2 | 0.18 m2 | 0.09 m2 |
| Plate Load Capacity | 2 L | 1 L | 2 L | 1 L |
| Ability to Capture Water | 6Kg | 6Kg | 6Kg | 6Kg |
| Vacuum Degree | <10Pa | <10Pa | <10Pa | <10Pa |
| Machine Dimension | W700×D560×H(960+450) mm | W700×D560×H(960+450) mm | W700×D560×H(960+450) mm | W700×D560×H(960+450) mm |
| Sample Tray Size | 4×Φ240mm | Ø 3×200 mm | 4×Φ240mm | Ø 3×200 mm |
| Power | 1300W | 1300W | 1300W | 1300W |
| Power Supply | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz |
| interlayer spacing | 70 mm | 70 mm | 70 mm | 70 mm |
| Cold trap size | Ø270×410 mm | Ø270×410 mm | Ø270×410 mm | Ø270×410 mm |
| The number of Schering bottles | Ø22: 360 | Ø22: 270 | Ø22: 360 | Ø22: 270 |
| Ø16: 740 | Ø16: 560 | Ø16: 740 | Ø16: 560 | |
| Ø12: 1320 | Ø12: 990 | Ø12: 1320 | Ø12: 990 | |
| N.W./ G.W | 130KG/145KG | 135KG/150KG | 145KG/160KG | 150KG/165KG |
