Ultrasonic cell pulverizer uses the dispersion effect of ultrasonic waves in the liquid to cause cavitation of the liquid, thereby breaking the solid particles or cell tissue in the liquid. The ultrasonic cell pulverizer consists of two parts: an ultrasonic generator and a transducer.
The ultrasonic generator converts the utility power into a 20-25 KHz alternating power supply transducer. The zirconium titanate piezoelectric vibrator is the heart of the transducer. It is elastically deformed with the alternating voltage at a frequency of 20-25 KHz, and the transducer is subjected to longitudinal mechanical vibration.
The vibration wave generates a cavitation effect by the titanium alloy horn immersed in the biological solution, and the biological particles in the excitation medium vibrate violently.
Features：
◆ Combined with microcomputer control, using DSP plus ARM technology, the performance is more stable and the data is more precise.
◆ It has the functions of options, temperature measurement, automatic frequency tracking, impedance adaptation, protection, and so on.

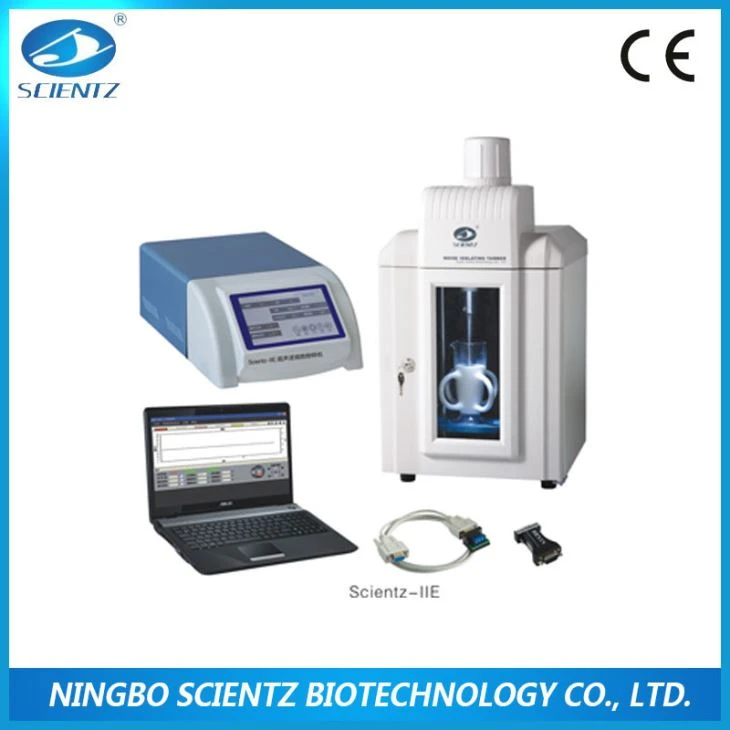

◆ With wireless or RJ-45 interface, it can communicate with host computer. It can control network and print remotely.
◆ Gap / continuous working mode, pulse 0.1-99.9S tunable
◆ Data storage 20 groups, user password landing protection
◆ 7 inch TFT large screen display temperature, power, amplitude and pulse mode and work / gap time, touch control
◆ It has self diagnostic function, automatic program error correction, overload protection and over temperature protection display.

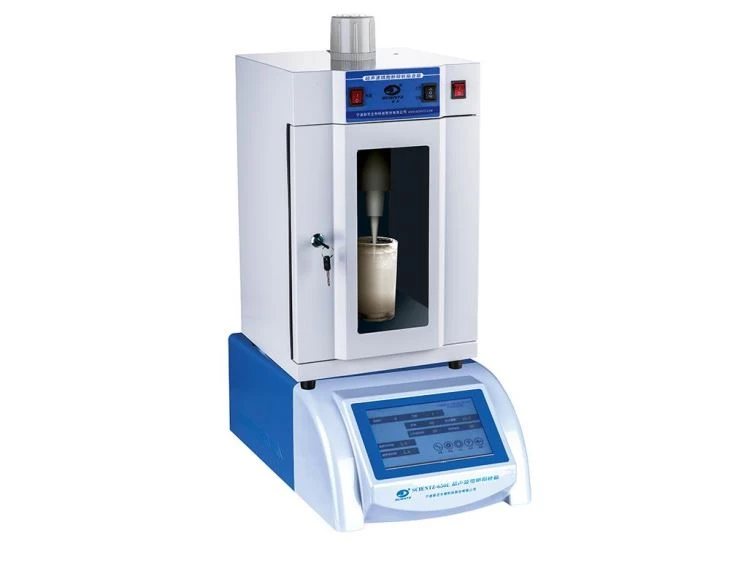

◆ The loudspeaker box has increased the functions of illumination, sterilization, automatic lifting, door locking and so on. The sound proof box can be put on the main engine and save time.
Main Technical Parameters：

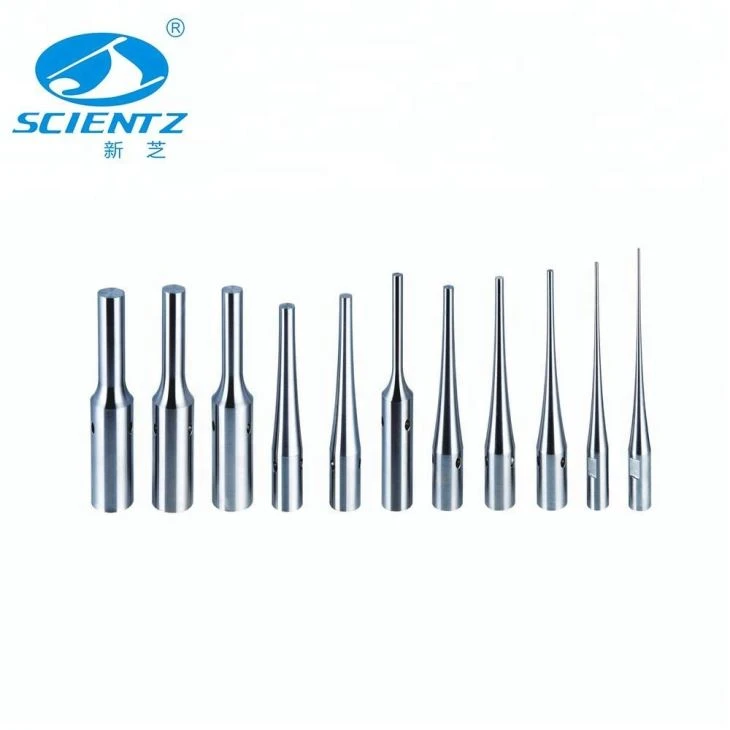

If Ф2, Ф3 or Ф6 horn is used, the power should be turned smaller to avoid overloading and rupture of the horn.
Ranger power range horn specifications power range
Φ2 2~20%
Φ3 3~30%
Φ6 10~50%
Φ10 >18%
Φ15 >22%
Φ20 >30%
