Characteristics:

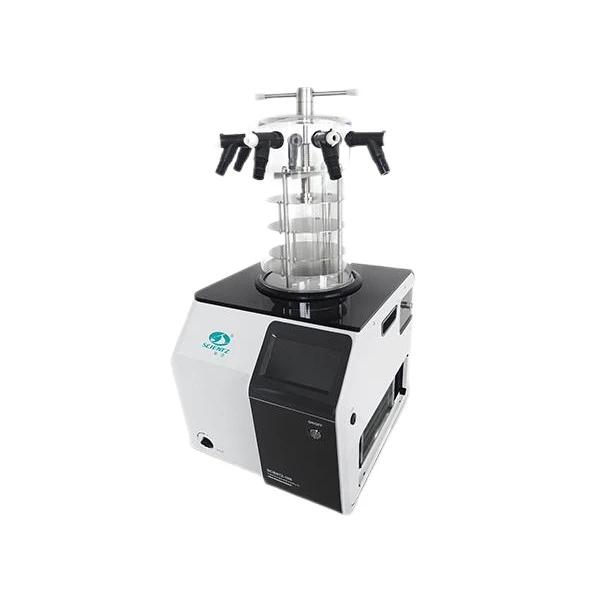

Small lab vacuum freeze dryer Lyophilizer
●Accord with international standards of Green environmental friendly
● 7″ True-color Touch Screen, English Bilingual Interface, display drying curve and history curve;
● U disk Can storage lyophilized data;
● Upload software can print curve;
● Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;
●Large opening trap, no coil inside, with samples pre-freeze function
● Imported refrigeration compressor, low noise
● Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean
● Transparent Bell type drying room, secure and ocular
● Stainless steel sample holder, common sample plate spacing adjustable
● Small size and easy to operate
● Nitrogen inflation valve within
| SCIENTZ-10N | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
| No-load Temperature | <-56℃ | <-56℃ | <-56℃ | <-56℃ |
| Freeze Area | 0.12 m2 | 0.08 m2 | 0.12 m2 | 0.08 m2 |
| Plate Load Capacity | 1.5 L | 1 L | 1.5 L | 1 L |
| Ability to Capture Water | 3Kg | 3 Kg | 3 Kg | 3 Kg |
| Vacuum Degree | <10Pa | <10Pa | <10Pa | <10Pa |
| Machine Dimension | W450×D580×H(380+450) mm | W450×D580×H(380+450) mm | W450×D580×H(380+450) mm | W450×D580×H(380+450) mm |
| Sample Tray Size | 4×Φ200mm | Ø 3×180 mm | 4×Φ200mm | Ø 3×180 mm |
| Power | 950W | 950W | 950W | 950W |
| Power Supply | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz |
| interlayer spacing | 70 mm | 70 mm | 70 mm | 70 mm |
| Cold trap size | Ø215×160 mm | Ø215×160 mm | Ø215×160 mm | Ø215×160 mm |
| The number of Schering bottles | Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
| Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 | |
| Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 | |
| N.W./ G.W | 80KG/95KG | 85KG/100KG | 95KG/110KG | 100KG/115KG |
|
Picture |
