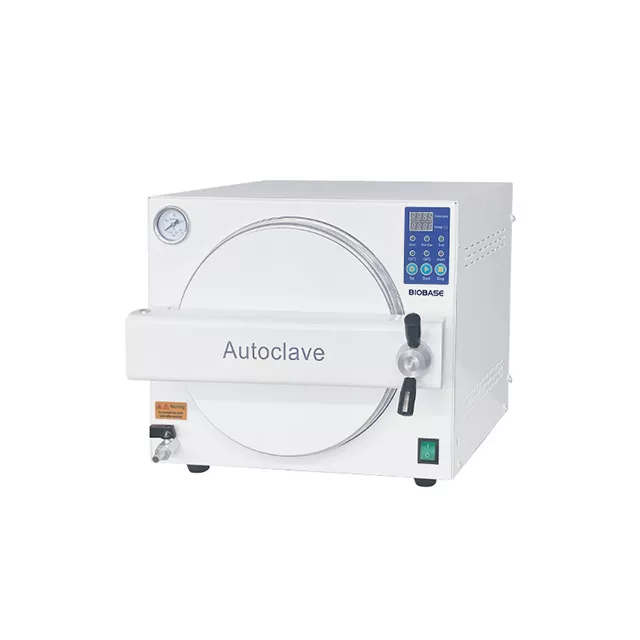

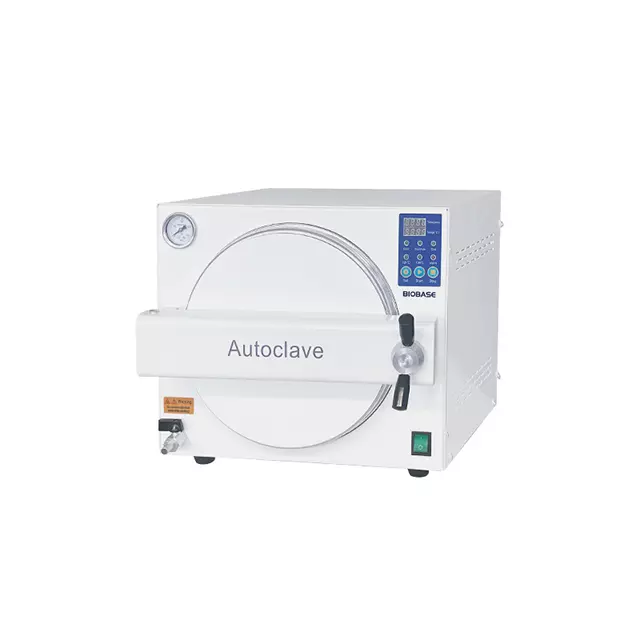

Table Top Autoclave Class N Series BKX-T18E BKX-T23E

BKX-T18E, BKX-T23E

It is mainly used to sterilize the culture medium, glassware, surgical instruments and dressings in the laboratory to ensure aseptic conditions.

Features:

1. High quality stainless steel sterilization chamber and sealing cover.

2. Microcomputer control for automatic circulation, with 121°C and 134°C freely settable.

3. LED display with touch buttons.

4. Equipped with standard test interface.

5. European Class N standards.

6. Automatic protection functions: over-temperature protection, over-pressure protection, low water level protection to prevent dry burning.

7. Buzzer reminder at the end of sterilization and automatic shutdown.

8. Automatically discharge cold air. Automatically discharge steam at the end of sterilization.

9. Built-in steam generating device to quickly provide saturated steam.

10. Two sterilization procedures at 121°C and 134°C are selectable.



Technical Parameters:

Model BKX-T18E BKX-T23E
Capacity 18L 23L
Door Manual
Display LED
Max Designed Pressure 0.25MPa
Working Pressure 0.22MPa
Max Design Temp. 139℃
Working Temp. 121/134℃
Temp. Precision 0.1℃
Chamber Material SUS304
Chamber Size φ250*370mm φ250*452mm
Altitude ≤2500m
Rack 1 rack with 2 trays
Standard Accessories Protective gloves, draining hose, door seal
Consumption 1.5KW 2KW
Power Supply AC220V, 50Hz(Standard)

AC110V, 60Hz(Optional)

External Size(W*D*H) 500*400*350mm 600*400*350mm
Net Weight 24kg 27kg
Package Size(W*D*H) 540*450*390mm 640*450*390mm
Gross Weight 26kg 29kg
