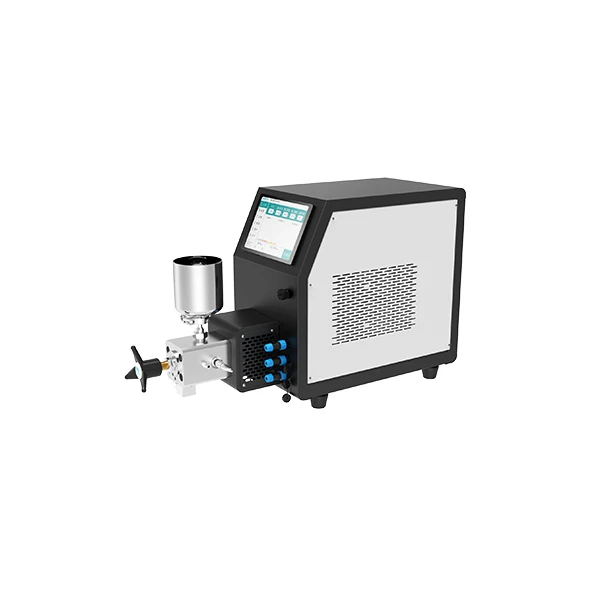

The Scientz-207A Ultra-High Pressure Homogenizer utilizes high-pressure energy generated by a servo motor. Materials are instantly released through precision slits, achieving disruption, homogenization, emulsification, and dispersion via high shear, cavitation, and collision effects-all under constant pressure conditions. The instrument uniformly refines material particle sizes to ≤100 nm with a disruption rate exceeding 95%, making it ideal for:
Nano-pharmaceutical applications (e.g., lipid emulsions, liposomes, lipid nanoparticles, nano-suspensions)
Laboratory and large-scale processing of fermentation samples (E. coli, yeast, etc.) in bioengineering, pharmaceutical R&D, and botanical extraction
Emulsification and homogenization in food & beverage (dairy, fruit juices), pharmaceuticals, and biotechnology industries
◣Core Advantages
Built-in cooling circulation system for direct homogenizing head temperature control
316L stainless steel contact parts with mirror-polished pipelines to prevent sample residue, complying with food and pharmaceutical industry standards
Optional homogenizing valves for customized processing needs
Compact design, lightweight construction, intuitive operation, high efficiency, and large sample throughput
Patented technology (invention patent and utility model patent approved)
◣Key Features
Adjustable homogenizing pressure (0–207 MPa) to meet nano-pharmaceutical requirements
Minimum sample processing volume: 15 ml
Key components imported from Germany and Japan for extended service life
Japanese-imported servo motor for stable, reliable performance and long durability
Automatic feeding and continuous operation without the need for exhaust
Physical homogenization method with zero sample residue
Specialized tool for seal replacement, ensuring easy maintenance
User-friendly operation, convenient after-sales service, and high cost-effectiveness
PLC control system with 7-inch touch screen for intuitive operation
Historical data storage and query functionality
Temperature alarm and automatic protection mechanisms
Digital display of system pressure and operating temperature
Real-time pressure and temperature curve visualization
Operation permission restriction for data security
◣Main Technical Parameters
| Parameter | Specification |
|---|---|
| Maximum Working Pressure | 1800 bar / 180 MPa / 26100 psi (adjustable) |
| Maximum Design Pressure | 2070 bar / 207 MPa / 30015 psi |
| Maximum Processing Capacity | 15 L/H (250 ml/min) |
| Minimum Processing Volume | 15 ml |
| Sample Residue | 0 ml (no residue) |
| Motor Power | 3.0 Kw / 380 V / 50 Hz |
| Overall Dimensions (L×W×H) | 1070 mm × 340 mm × 460 mm |
| Weight | < 60 KG |
| Maximum Feed Particle Size | < 100 μm |
| Flow Control | Inverter-controlled, adjustable flow rate |
| Sensors | German-brand pressure and temperature sensors; optional constant temperature bath |
| Cooling System | Built-in cooler (no material consumption, precise temperature control during homogenization) |
| Exhaust Requirement | No exhaust needed |
| Control System | PLC control with 7-inch touch screen |
| Drive Component | Panasonic (Japan) servo motor for electronic control drive |
| Condensate Connection | Equipped with condensate inlet/outlet plate |
