As far as I know, ultrasonic cleaning machines are mainly divided into household, commercial, medical, and laboratory categories. After decades of development, not only are the functions more abundant, but the use methods are also more convenient and user-friendly.

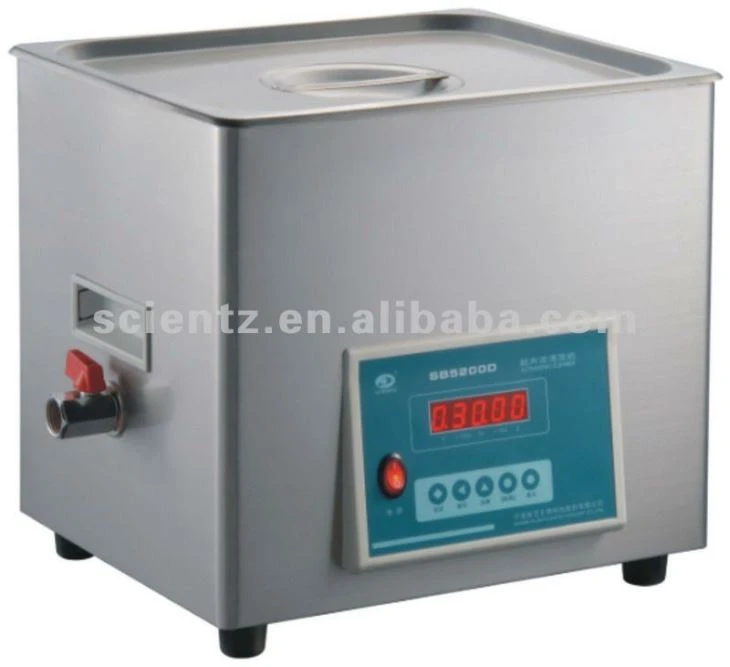

D Series Ultrasonic cleaning machine
● Digital display and setting ultrasonic cleaning time
● Display woking countdown time
● Timing range: 1-600 minutes adjustable
● Equipped with a special stainless steel basket, reduce sound cover
● The shell and cover are made by stainless steel
● The equipment controlled by Single-chip controller
● The lastest working parameters can be stored in memory after power-off
Equipment maintenance
Regular inspections necessary for operational safety and equipment life
How does the ultrasonic work?
Ultrasonic cleaning is the direct and indirect effect of the socialization, acceleration and direct flow of ultrasonic waves on liquids and dirt, so that the dirt layer is dispersed, emulsified and stripped to achieve the purpose of cleaning. In the cleaning machine, cavitation and direct flow are applied more.
(1) Cavitation: Cavitation is the transmission of ultrasonic waves to the liquid by a high-frequency transformation of the compression force and the decompression interaction of more than 20,000 times per second. When the pressure is reduced, a vacuum core group bubble is generated in the liquid. The phenomenon, when the compression force acts, the vacuum core group bubble is crushed by pressure to produce a strong impact force, thereby peeling off the dirt on the surface of the object to be cleaned, thereby achieving the purpose of precision cleaning.
(2) Straight inflow: The phenomenon that ultrasonic waves flow in the direction of sound propagation in the liquid is called straight flow. When the sound intensity is 0.5W/cm2, the naked eye can see the straight flow, and the flow perpendicular to the vibration surface. The flow rate is about 10 cm/s. The direct oil flow causes the micro-oil dirt on the surface of the object to be cleaned to be stirred, and the cleaning liquid on the surface of the dirt is also convected, and the dissolved solution of the dissolved dirt is mixed with the new liquid to accelerate the dissolution rate. It plays a big role in the handling of dirt.
(3) Acceleration: The acceleration generated by the liquid particles. For the ultrasonic cleaning machine with higher frequency, the cavitation effect is not significant. At this time, the cleaning mainly relies on the acceleration of the liquid particles under the action of ultrasonic waves. Precision cleaning.
The use of ultrasonic cleaners should be carried out in strict accordance with the following requirements.
(1) connecting the cable between the cleaning tank and the generator;
(2) Pour the cleaning solution into the cleaning tank (the amount of the cleaning liquid poured into the object to be cleaned is preferably about three-quarters of the whole liquid level);
(3) placing the object to be cleaned into the washing tank;
(4) Plug in the power plug;
(5) Set up cleaning time and start up.
