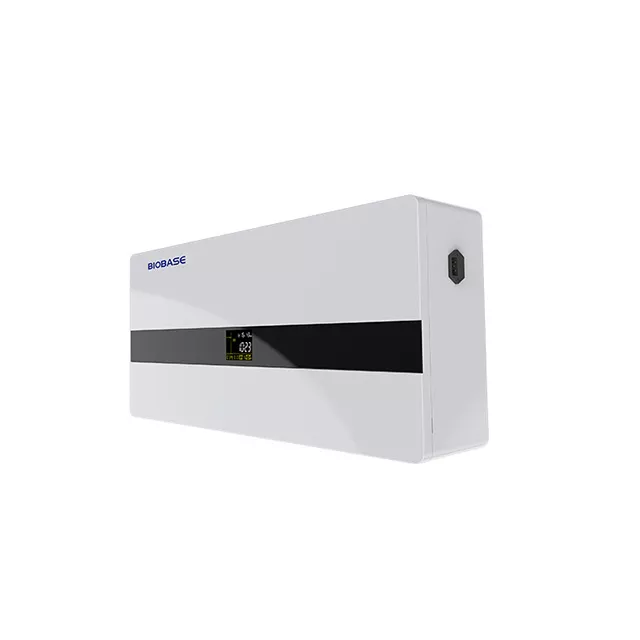

UV Air Sterilizer(Wall Mounted)

BKZII-B-800 ,BKZII-B-1000, BKZII-B-1200, BKS-B-600

UV air sterilizer ‌ is a kind of equipment which is composed of ultraviolet lamp, filter, fan and ballast, mainly used for air disinfection. The working principle is that part of the dirty air in the closed room is sucked into the machine through the ultra-static fan, the dust is filtered through the composite filter, and then the bacteria in the flowing air is instantly killed by the ultraviolet lamp, and finally the clean air that has been filtered out of the dust and killed bacteria is sent back to the room to achieve the purpose of air purification and sterilization.

Features:

1. The coexistence of man and machine means that it can be disinfected in a manned environment or in an unmanned environment.

2. LED display, there are 20s to display the total running time after shutdown(Only for BKS-B-600).

3. Two kinds of wind direction control: manual and automatic. The wind angle can be adjusted manually(Only for BKS-B-600).

4. Using a single chip microcomputer control core, 9 groups of switch segments can be booked within 24 hours, and the wind speed is adjustable in three gears(BKS-B-600 only have 3 groups of switch segments).

5. It has automatic accumulation of working hours, and 4 working modes: manual, scheduled, automatic and temporary, which are convenient for users to choose(BKS-B-600 only have 3 working modes: manual, scheduled, and temporary).

6. It has ultraviolet lamp, fan, negative ion module, plasma module failure alarm, filter and ultraviolet lamp maintenance prompt alarm(Only for BKZII-B-800/1000/1200).

7. It adopts an easy-to-remove filter design.

Technical Parameters:

Model BKZII-B-800 BKZII-B-1000 BKZII-B-1200 BKS-B-600
Applicable Space ≤80m³ ≤100m³ ≤120m³ ≤60m³
Circulating Air ≥800m³/h ≥1000m³/h ≥1200m³/h ≥600m³/h
Shell Material High quality cold rolled steel plate ABS, anti-UV
Filter Filter dust particles above 5μm Activated carbon, filter dust

particles more than 5μm

UV Lamp Life ≥5000h
UV Leakage ≤1μW/cm² ≤3μW/cm² ≤1μW/cm² ≤3μW/cm²
O3 Leakage ≤0.02mg/cm3 ≤0.016mg/cm3 ≤0.02mg/cm3 ≤0.006mg/cm3
Negative Ion Generation ≥5*106PCS/cm3 ≥5*106PCS/cm3(Optional)
Natural Bacteria Extinction Rate ≥90%
Sterilization Rate of Staphylococcus Albus ≥99.9%
Noise ≤55dB(A)
Consumption ≤180W ≤235W ≤300W ≤130W
Power Supply AC220V, 50/60Hz(Standard);

AC110V, 50/60Hz(Optional)(External transformer)

External Size (W*D*H) 800*360*160mm 885*280*220mm
Net Weight 17.6kg 17.8kg 18kg 7.2kg
Package Size(W*D*H) 860*420*210mm 1100*280*385mm
Gross Weight 19.2kg 19.3kg 19.5kg 9.8kg
