The Hematology Analyzer can detect abnormalities of healthy animals, assess sick animals and monitor sick animals undergoing treatment by performing routine blood tests. It is suitable for animal experiment center, drug research center, animal and plant quarantine department, zoo, pet hospital, animal husbandry and veterinary system and other institutions.
Features:
1. Detection many animal species, with upgrade function.
2. Seven animal detection modes(cow, horse, sheep, goat, rabbit, dog, cat, camel).
3. Automatic detection, eliminating manual error.
4. Abnormal results intuitive prompt, timely and accurate screening out abnormal experimental results.
5. Three detection modes: venous blood, peripheral blood, pre-diluted peripheral blood.
6. 9. 7-inch color touch screen, data status at a glance.
7. One button for maintenance.
8. It can be turned on continuously for 24 hours.
9. Applying cyanide-free hemolytic agent to sample, safe and environmental protection without stimulation.
10. Automatic system diagnosis and maintenance, with a variety of alarm functions.
11. Fully enclosed reagent line, no contamination.
12. Excellent data management and communication function, automatically store 100,000 results.
13. Supporting online remote diagnosis and quality control.

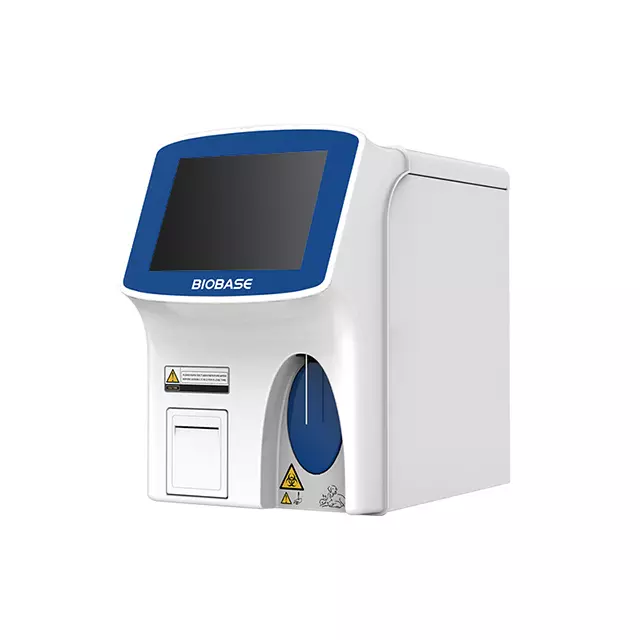

The BH-HA310VET hematology analyzer has three detection modes of venous blood, capillary blood, prediluted blood, including 21 detection parameters:
MID# GRAN# LYM% RBC MCV MCHC RDW-CV MPV PCT P-LCC WBC
LYM# MID% GRAN% HGB HCT MCH RDW-SD PLT PDW P-LCR
Technical Parameters:
| Model |
BH-HA310VET |
| Throughput |
60 samples/hour |
| Principle |
Impedance for WBC differentiation, WBC/RBC/PLT count, Colorimetric method for HGB |
| Channel |
2 |
| Parameters |
21 parameters(including MID#, GRAN#, LYM%, RBC, MCV, MCHC, RDW-CV, MPV, PCT, P-LCC, WBC, LYM#, MID%, GRAN%, HGB, HCT, MCH, RDW-SD, PLT, PDW, P-LCR) |
| Histograms |
3 histograms(including WBC, RBC, PLT) |
| Sample Volume |
Venous blood: 10μl; Capillary blood: 10μl; Prediluted: 20μl |
| Calibration |
Manual calibration, automatic calibration, and fresh blood calibration |
| Counting Mode |
Venous blood, capillary blood, prediluted blood |
| Printing Model |
Auto print, manual print |
| LIS System |
Supporting Bi-directional LIS |
| Language |
Chinese, English, Spanish, French |
| QC |
L-J, X-B |
| Reagent |
Diluent 10L, Hemolytic agent 250ml(animal specific), Probe cleaner 50ml |
| Date Input |
9.7-inch touch screen; mouse, keyboard(optional) |
| Output |
Built-in printer, supporting external printers |
| Printer Paper |
57*30mm |
| Interface |
4 USB ports, 1 network port, and 1 RS232 serial port |
| Storage |
Automatic storage, 100,000 results with histograms(including sample information) |
| Information Transmission |
Bidirectional LIS communication, HL7 and many other transmission protocols |
| Unclog |
Reverse high-pressure flush |
| Work Temp. |
10~40°C |
| Power Supply |
AC100~240V, 50/60Hz |
| Relative Humidity |
≤80％ |
| Atmospheric Pressure |
86.0kPa~106.0kPa |
| Carry-Over Rate |
Parameter |
WBC |
RBC |
HGB |
PLT |
| CV |
≤1.5% |
≤1.0% |
≤1.0% |
≤3.0% |
| Background |
WBC |
RBC |
HGB |
PLT |
| ≤0.5*109/L |
≤0.05*1012/L |
≤2g/L |
≤10*109/L |
| Linearity |
Parameter |
Measurement Range |
CV |
| WBC |
(1~10.00)*109/L
(10.1~99.9)*109 |
±0.5*109/L
±5% |
| RBC |
(0.3~1.00)*1012/L
(1.01~7.00)*1012/L |
±0.5*1012/L
±5% |
| HGB |
(20~70)g/L
(71~200.0)g/L |
±2.0g/L
±3% |
| PLT |
(20~100)*109/L
(101~999)*109/L |
±10.0*109/L
±10% |
| Precision |
Parameter |
Repeatability |
Measurement Range |
| WBC |
≤ 4.0% |
(3.5~9.5)*109/L |
| RBC |
≤ 2.0% |
(3.8~5.8)*1012/L |
| HGB |
≤ 2.0% |
(115~175)g/L |
| PLT |
≤ 8.0% |
(125~350)*109/L |
| HCT |
≤3.0% |
35%~50% |
| External Size(W*D*H) |
295*505*430mm |
| Package Size(W*D*H) |
Instrument: 404*564*616mm;
Reagent 1: 340*340*340mm;
Reagent 2: 200*150*100mm |
| Net Weight |
20kg |
| Gross Weight |
Instrument: 23kg; Reagent 1: 13kg; Reagent 2: 13kg |
