Application:
It is suitable for animal experimental centers of scientific research institutes, animal and plant quarantine departments, zoos/pet hospitals, animal husbandry and veterinary systems and other institutions.
Features:
1. The single detection time was less than 10s.
2. Built-in barcode scanning function, automatic identification of project ID and project information.
3. Samples were randomly inserted to support multiple joint detection with one card.
4. Standard LIS/HIS transmission function, USB data export function.
Technical Parameters:
| Model |

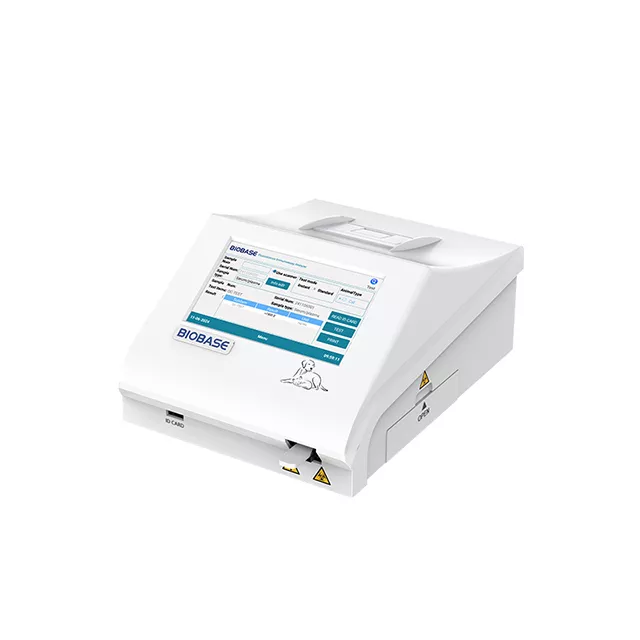

BKP1000VET |

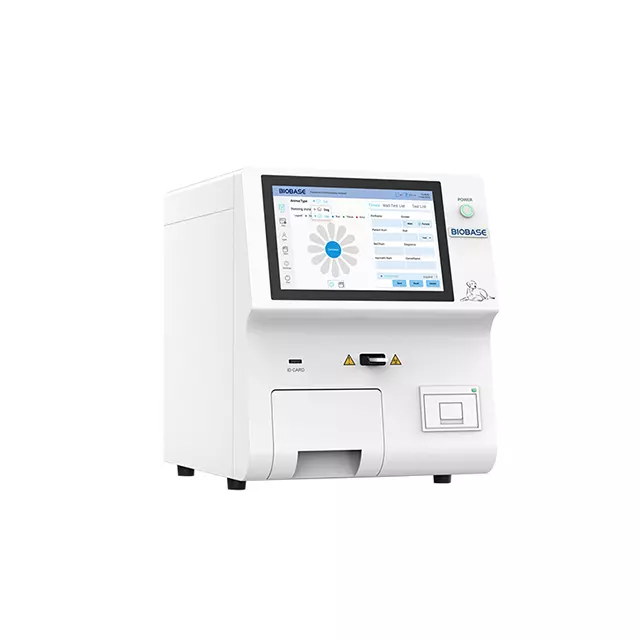

BKP2000VET |
| Animal Type |
Cat, dog |
| Excitation Light Source |
LED |
| Wavelength |
Excitation wavelength λ0=365nm; Detection wavelength λ1=615nm |
| Detection Channel |
1 |
| Incubation Position |
1 |
12 |
| Sample Type |
Serum, plasma, whole blood and urine, etc |
| Detection Mode |
Supports multiple items in one card |
| Testing Speed |
<10s/test |
| Repeatability |
CV≤5% |
| Stability |
σ≤±8% |
| Linear Correlation |
(r)≥0.98 |
| Accuracy |
Δn≤±8% |
| Display |
7.0-inch color touch screen |
10.1-inch color touch screen |
| Language |
Chinese, English, Spanish, Other languages can be customized |
| Interface |
RS232, USB, Ethernet port |
| Printer |
Built-in thermal printer |
| Power Supply |
AC100~240V, 50/60Hz |
| External Size(W*D*H)mm |
215*310*158 |
336*410*400 |
| Net Weight(kg) |
3 |
17 |
| Package Size(W*D*H)mm |
455*325*245 |
600*520*687 |
| Gross Weight(kg) |
4.5 |
36.5 |
Reagent Product Menu:
| Classification |
Product Name |
| Infectious Disease Series |
Feline Panleukopenia Virus(FPV) Test Kit(Fluorescence immunochromatography method) |
| Feline Coronavirus(FCoV) Test Kit(Fluorescence immunochromatography method) |
| Feline Herpesvirus(FHV) Test Kit(Fluorescence immunochromatography method) |
| Feline Calicivirus(FCV) Test Kit(Fluorescence immunochromatography method) |
| Canine Distemper Virus(CDV) Test Kit(Fluorescence immunochromatography method) |
| Canine Coronavirus(CCV) Test Kit(Fluorescent Immunochromatographic Assay) |
| Canine Parvovirus(CPV) Test Kit(Fluorescence immunochromatography method) |
| Feline Antibody Triple(FPV Ab/FHV Ab/FCV Ab) Test Kit(Fluorescence immunochromatography method) |
| Canine Antibody Triple(CPV Ab/CDV Ab/ICH Ab) Test Kit(Fluorescence immunochromatography method) |
| Inflammation Series |
Feline Serum Amyloid A(fSAA) Test Kit(Fluorescence immunochromatography method) |
| Canine C-Reactive Protein(cCRP) Test Kit(Fluorescence immunochromatography method) |
| Myocardial Series |
Canine Cardiac Troponin I(cTnI) Test Kit(Fluorescence immunochromatography method) |
| Canine N-Terminal brain natriuretic peptide precursor(cNT-proBNP) Test Kit(Fluorescence immunochromatography method) |
| Feline Cardiac Troponin I(fcTnI) Test Kit(Fluorescence immunochromatography method) |
| Feline N-Terminal brain natriuretic peptide precursor(fNT-proBNP) Test Kit(Fluorescence immunochromatography method) |
