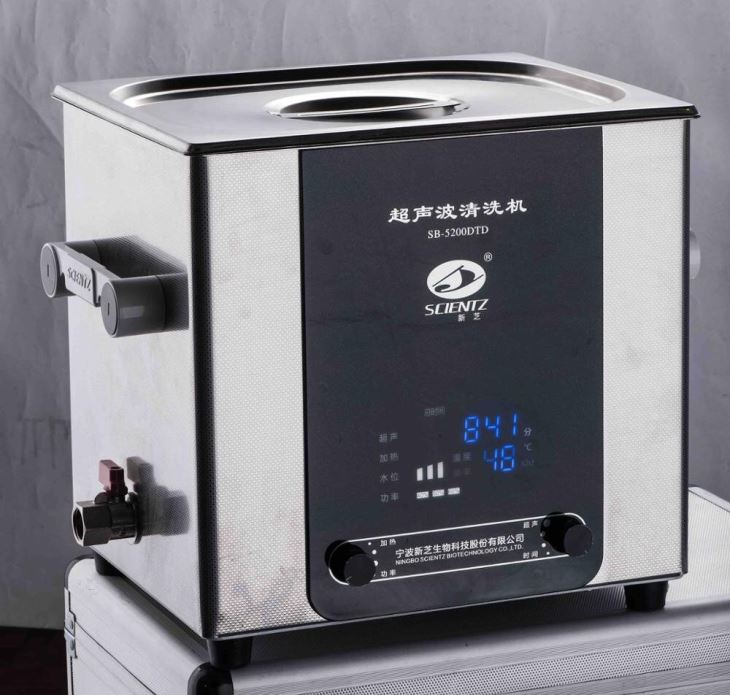

Opticas Partners Ultrasonic Cleaner
Designed for precision and reliability, the Opticas Partners ultrasonic cleaner combines advanced functionality with user-friendly features, making it ideal for optical component cleaning, laboratory applications, and industrial use.
Key Features
Intuitive Digital Interface
Large display for easy parameter setting and monitoring of cleaning time, temperature, and power.
Adjustable Power & Timing
Power range: 40%–100% adjustable to match cleaning intensity with component sensitivity.
Digital timer: Set cleaning duration from 1 to 999 minutes with real-time countdown display.
Precision Temperature Control
Temperature range: Room temperature to 80°C, with real-time display of the cleaning tank’s actual temperature for optimized results.
Durable & Efficient Design

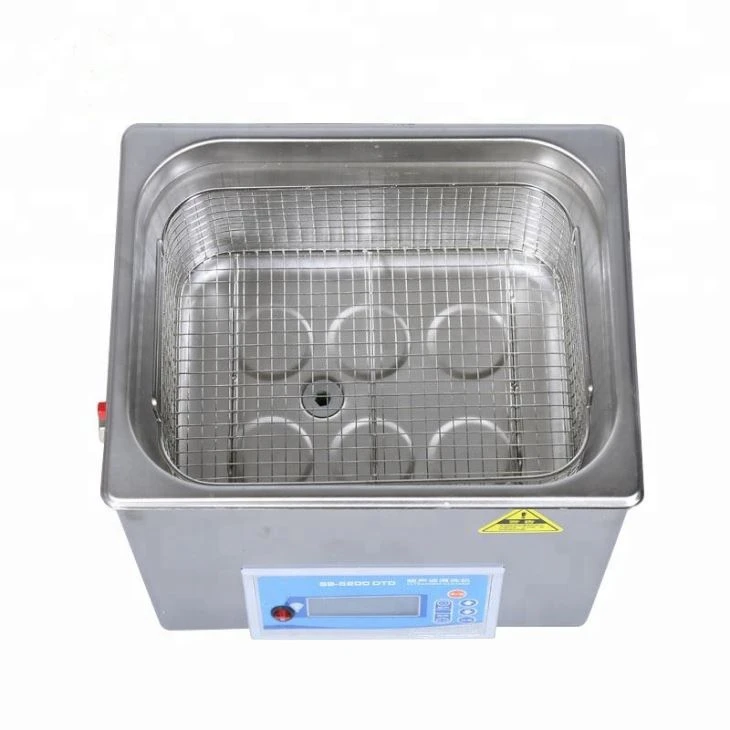

Stainless steel construction: Corrosion-resistant shell, cover, and included basket for long-term use.
Sound-dampening cover: Reduces operational noise for quieter work environments.
Intelligent Memory Function
Single-chip controller stores the latest working parameters (power, time, temperature) for quick recall after power-off, minimizing setup time.
Specifications
| Feature | Detail |
|---|---|
| Power Adjustment | 40%–100% |
| Timing Range | 1–999 minutes |
| Temperature Range | RT–80°C |
| Construction Material | Stainless steel |
| Included Accessories | Stainless steel basket, sound cover |
| Control System | Single-chip microcontroller |
Applications
Optical Components: Cleaning lenses, prisms, and precision optical parts without damage.
Laboratories: Sterilizing glassware, preparing samples, and degreasing scientific instruments.
Industrial Use: Degreasing small mechanical parts, electronics components, and medical tools.
Benefits
Versatility: Adaptable to various cleaning tasks through power, time, and temperature adjustments.
Convenience: Memory function and intuitive controls streamline repetitive cleaning processes.
Safety: Non-abrasive ultrasonic technology ensures delicate components remain undamaged.
Main Technical Parameters:
| Model | Inner Tank | Volume | Frequency | power | Heating power |
Drainage |
Adjustable Temp. | Adjustable time |
Rack |
| L/W/H ( mm) | L | KHZ | W | W | °C | min | |||
| SB-120DTD | 240×140×100 | 3 | 40 | 120 | 120 | / | Ambient-80 | 1-999 | √ |
| SB-3200DTD | 300×155×150 | 6 | 40 | 180 | 120 | / | Ambient-80 | 1-999 | √ |
| SB-5200DTD | 300×240×150 | 10 | 40 | 200 | 320 | √ | Ambient-80 | 1-999 | √ |
| SB-5200DTD | 300×240×150 | 10 | 40 | 250 | 320 | √ | Ambient-80 | 1-999 | √ |
| SB-5200DTD | 300×240×150 | 10 | 40 | 300 | 320 | √ | Ambient-80 | 1-999 | √ |
| SB-4200DTD | 300×240×200 | 14.4 | 40 | 400 | 320 | √ | Ambient-80 | 1-999 | √ |
| SB25-12DTD | 500×300×150 | 22.5 | 40 | 500 | 600 | √ | Ambient-80 | 1-999 | √ |
| SB25-12DTD | 500×300×150 | 22.5 | 40 | 600 | 600 | √ | Ambient-80 | 1-999 |
Ultrasonic cleaning machine transducer common problems:
The transducer is degummed. We know that most manufacturers use adhesive to fix the transducer, but the ultrasonic cleaner will degumming due to vibration after long-term use.
There are also manufacturers that use the method of fastening with screws and screws. Under normal circumstances, there will be no degumming. Due to the action of the screws, the vibrator will not fall off the vibrating surface after degumming. The general judgment method is to gently shake the tail of the vibrator by hand and observe the vibration carefully. The judgment of the glue condition of the face.
The use of ultrasonic cleaners in various industries
Application in the service industry.
In daily production, glasses and jewelry can be cleaned with ultrasonic waves. It is fast and harmless. Large hotels and restaurants use it to clean tableware. It not only has good cleaning effect, but also has the effect of killing viruses.
Ultrasonic cleaning of metal
It is well known that after the metal bar is extruded into a wire, the outer part of the wire often has a layer of carbonized film and oil. It is difficult to remove the dirt (especially the whole wire) by acid cleaning or other cleaning methods. The ultrasonic wire washing machine is According to the actual production needs, a continuous wire-cutting and high-efficiency cleaning equipment is used. The rough washing part is composed of a cleaning liquid storage tank, a transducer, a circulation pump, a filter and a matching piping system. After the wire is ultrasonically washed and washed, And then blow dry to complete the entire cleaning process.
The whole set of equipment integrated control is simple, convenient and effective. It is widely used in other wires such as silk, tungsten wire, molybdenum wire, silk wire and copper wire (before insulation coating).
