High pressure homogenizer using the material in the special role of plunger into the valve which it is adjustable pressure, after a certain width limiting slot (work area), transient voltage loss of material at high velocity (1000-1500 M / sec) from impact on one of the components of the collision of the valve ring, three effects: cavitation, impact effect and shear effect.
After treatment of the three effects,the particle size can be evenly below 100nm, the broken rate is more than 95%, it can be used for the treatment of fermentation tank samples and design, mainly used for biological engineering laboratories, pharmaceutical companies such as the scale of processing Escherichia coli and yeast samples,
It is standard equipment in the development and production of biological engineering and bio pharmaceutical industry , can be used for dairy products, food and beverage, fruit juice, chemical and biological industry of emulsification, homogenate, homogenization treatment.
This machine has a built-in cooling circulation system. It directly cools the homogeneous head. All the materials and pipes which contact the sample are made of 316L stainless steel.
It is optional to buy two stage homogeneous modules, and can choose to buy different homogeneous valve for different applications.

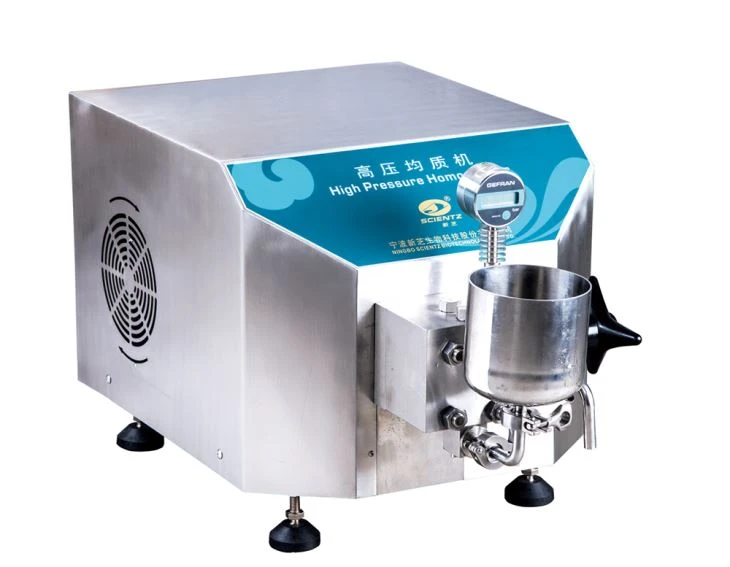

High Pressure Homogenizer Series is exclusively designed for processing the samples within fermentation tank.It is mainly used to crush the germs of E.coli and yeast for bio-engineering laboratories, pharmaceutical companies in which the samples are processed on a scale.
It can also be used in chemical and materials’ industry for emulsification and homogenization. The machine bears the characteristics of high pressure, small volume, easy operation, high processing efficiency and large amounts of samples due to using the key components imported
Main Technical Parameters：
| Maximum working pressure | 1200bar/120M pa/17400psi |
| Maximum design pressure | 1500bar/150Mpa/21750psi |
| Maximum capacity | 12L/h、25L/h two models machine |
| Minimum capacity | 30ml |
| Cooling | Built-in cooler |
| Motor Power | 1.5KW/380V/50HZ |
| Dimensions | L800*W460*H450mm |
| Weight | 120Kg |
Common problem
The oil temperature in the crankcase is too high or the main bearing temperature is too high and the treatment method
cause of issue
1) Serious oil shortage or deterioration of lubricating oil in the crankcase;
2) The bearing assembly clearance is too small or burnt;
3) The main bearing is seriously worn;
4) The lubricating oil in the crankcase is too dirty, and the bearing enters debris.
Troubleshooting method
1) Check the cause of lack of oil in the crankcase. If the oil leakage is to be tightened in time, if the main drive shaft leaks, replace the main drive shaft and bushing in time to eliminate oil leakage and add new oil or replace. New oil
2) Adjust the bearing assembly clearance or replace the bearing bush;
3) Replace the main bearing;
4) Replace with new oil or bearings.
