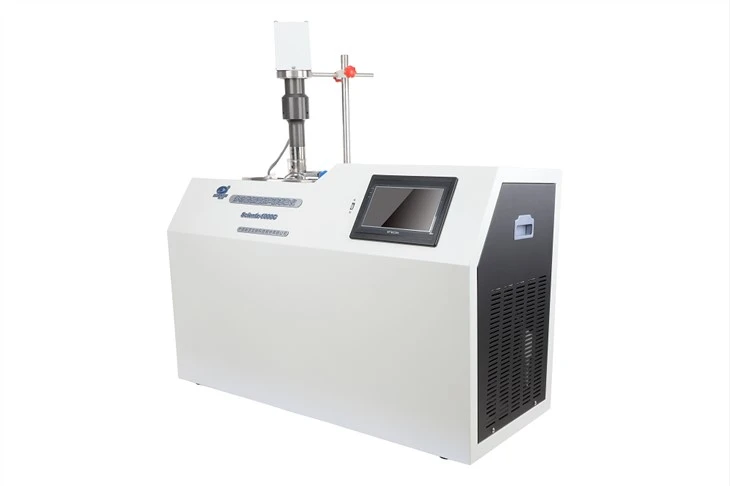

SCIENTZ-1000C Gathering Constant Temperature Ultrasonic Extractor

The Gathering Constant Temperature Ultrasonic Extractor is a new type of ultrasonic extraction and extraction device that applies modern ultrasonic technology and combines intelligent low temperature and constant temperature systems. The ultrasonic secondary effect of the instrument is more conducive to the full mixing and smooth reaction of the reactants than the general phase transfer catalysis and mechanical stirring, and it can also meet the requirements of different customers for the reaction temperature. Ultrasonic technology has gradually entered the chemical laboratory as a physical catalysis method, and is currently widely used in the pharmaceutical industry, chemical industry, colleges and universities and scientific research laboratories.

◣Performance characteristics

Adopt touch screen integrated control technology
Can set data, store data and control working status
According to the reaction environment, through the frequency automatic tracking, it can automatically achieve the best ultrasonic effect
Adjustable ultrasonic power, time and reaction temperature
Ultrasonic technology, magnetic stirring system combined with constant temperature control system make the reaction more sufficient
High-power ultrasonic and thermostatic systems can be used in combination or individually
With fault self-diagnosis and alarm prompt function
The special multi-neck reaction bottle can be filled with various gases to participate in the reaction, and can also be continuously fed
◣Instrument parameters

Model: SCIENTZ – 1000 C
Ultrasonic power MAX: 1800 W
Reaction bottle volume: 1000 ml
Probe diameter: Ф 20 mm
Power adjustable range: 30 %-100%
Ultrasonic frequency: 20KHz±1KHz
Total ultrasound time: 1-999 min can be set
Ultrasound time: 1-99 S can be set
Interval time: 1-99 S can be set
‍‍‍‍‍‍‍‍‍‍‍‍‍Agitator: 1%-30% can be set (the maximum speed is 1000 r/min). Users who need it can choose and use it with a four-neck bottle
Compressor power: 500 W
Heating power: 2000 W
Temperature control method: PID automatic temperature control
Temperature measurement method: dual-channel temperature measurement, monitoring the real-time temperature in the reaction system and constant temperature working tank.
Temperature control range: 0-99 ℃
Temperature fluctuation: ≦±1 ℃
Constant temperature volume: 6 L
Abnormal alarm function: Yes, the equipment has the function of fault self-diagnosis and alarm prompt
Operation record mode: The equipment has a working curve screen, and the whole process records the change information of parameters such as temperature during operation
Equipment control mode: 7-inch TFT touch screen display and single-chip integrated control
Equipment operation mode: operate directly on the touch screen, set parameters such as temperature, power, time, etc.
USB communication port: The device comes with a USB communication port, plug in a USB flash drive, and the curve and other information can be saved to the USB flash drive in the form of pictures
Remote communication serial port: This function is an option, and users who need it can choose it (including the host computer software) to connect to the computer
Reaction bottle: conventional three-necked bottle, users who need it can choose five-necked bottle
