◣Product Description

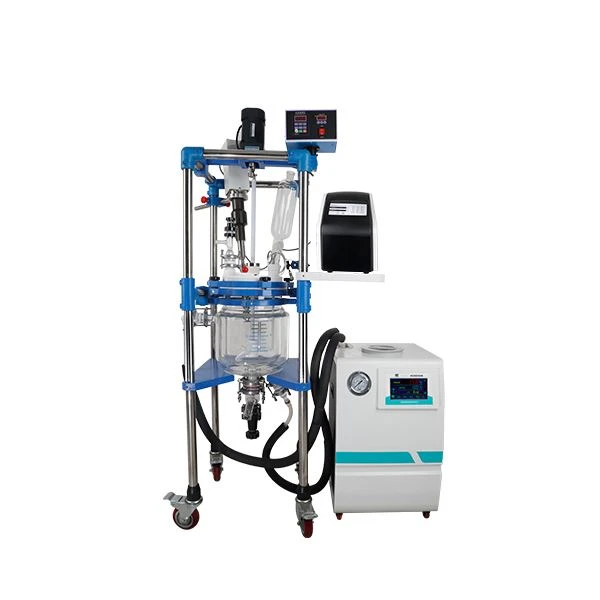

The SCIENTZ-T series ultrasonic extractor is composed of three main components: an ultrasonic cell disruptor, an energy-saving intelligent thermostatic bath, and a double-layered glass reactor. Incorporating the latest foreign technology, this instrument integrates microcomputer control, frequency selection, temperature measurement, and protection hardware and software technologies. It is a widely used ultrasonic extraction device in fields such as biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, agronomy, medicine, and pharmaceuticals.
◣Working Principle
The ultrasonic extractor utilizes intense ultrasound to generate cavitation, disruption, and emulsification effects in solids and liquids. Under temperature-controlled stirring conditions, various reactants are added in accordance with the required reaction parameters, enabling the extraction of target substances from cells.
◣Product Features
Precise Temperature Control: Equipped with a temperature measurement function to ensure accurate and reliable temperature control during the extraction process.
Flexible Parameter Setting: Ultrasonic time, power, and stirring speed can be arbitrarily adjusted within the specified range to meet different experimental requirements.
Wide Applicability: Compatible with different models of reactors, making it suitable for the diverse needs of various laboratories.
Intelligent Operation: Integrates microcomputer control, frequency selection, temperature measurement, and multiple protection technologies for stable and user-friendly operation.
◣Technical Specifications
Note: The table below details the technical parameters of different models in the SCIENTZ-T series, providing a comprehensive reference for laboratory selection.
| Model | SCIENTZ-5T | SCIENTZ-10T | SCIENTZ-15T | SCIENTZ-30T | SCIENTZ-50T |
|---|---|---|---|---|---|
| Model | SCIENTZ-5T | SCIENTZ-10T | SCIENTZ-15T | SCIENTZ-30T | SCIENTZ-50T |
| Operating Frequency | 20-25kHz | 20-25kHz | 20-25kHz | 20-25kHz | 20-25kHz |
| Ultrasonic Power | 20-1000(W) | 20-1200(W) | 200-1500(W) | 200-1800(W) | 250-2400(W) |
| Double-Layer Reactor Volume | 5L | 10L | 15L | 30L | 50L |
| Amplitude Transformer Diameter | Φ30 | Φ30 | Φ30 | Φ50 | Φ50 |
| Operating Voltage | 220V | 220V | 220V | 220V | 220V |
| Ultrasonic Time | 0.1-99.9S | 0.1-99.9S | 0.1-99.9S | / | / |
| Interval Time | 0.1-99.9S | 0.1-99.9S | 0.1-99.9S | / | / |
| Total Time | 1-999min | 1-999min | 1-999min | 1s-59min59s | 1s-59min59s |
| Power Setting | 1-99% | 1-99% | 1-99% | 1-99% | 1-99% |
| Duty Cycle | 0.1-99.9% | 0.1-99.9% | 0.1-99.9% | / | / |
| Actual Measured Temperature | Included | Included | Included | Included | Included |
| Stirring Power | 60W | 60W | 90W | 120W | 120W |
| Stirring Speed | 10-600r/min | 10-600r/min | 10-600r/min | 10-600r/min | 10-600r/min |
| Bracket | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Additive Volumetric Flask | Included | Included | Included | Included | Included |
| Liquid Inlet/Outlet | Included/Included | Included/Included | Included/Included | Included/Included | Included/Included |
| Refrigeration Equipment | DLK-5003 | DLK-5007 | DLK-5010 | DLK-5010 | DLK-5010 |
◣Application Areas
Biopharmaceuticals: Dispersion of injectable pharmaceutical substances, herbal extraction, preparation of suspensions, and vaccine production.
Cosmetics Industry: Extraction of active ingredients from medicinal materials, particle micronization, and achievement of dispersion and emulsification effects.
Food Engineering: Application of ultrasonic aging acceleration technology in wine production.
Chemical Engineering: Ultrasonic treatment of silica scale.
