Product Overview

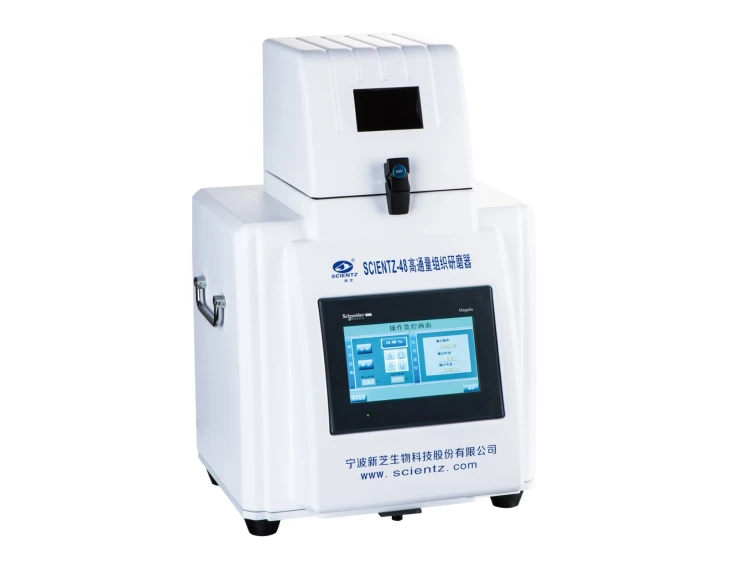

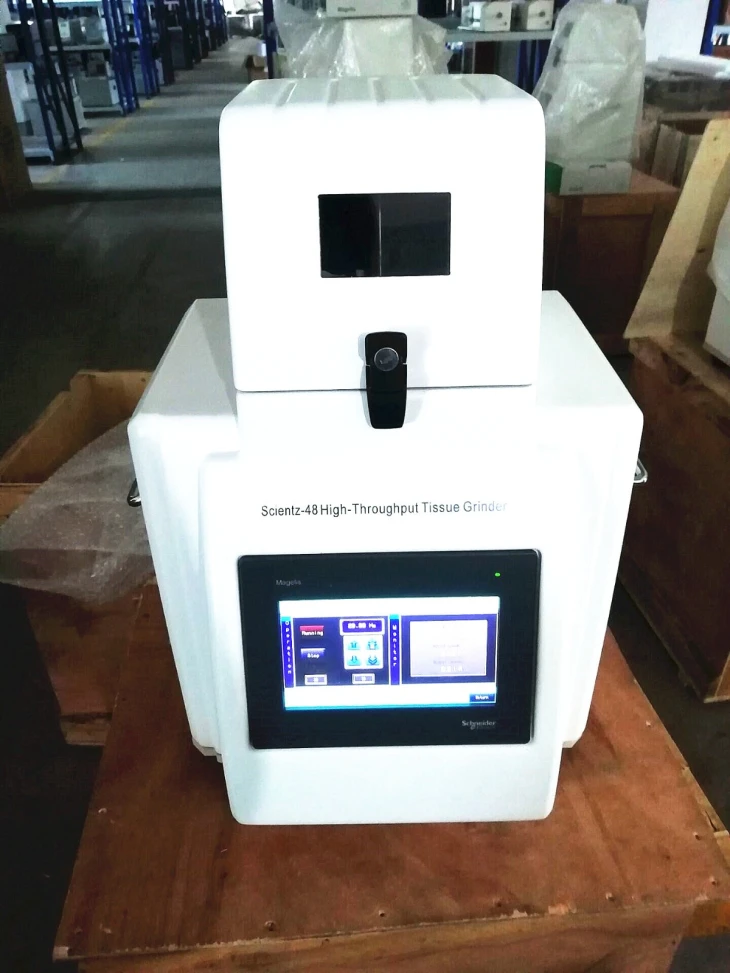

The Scientz-48 High-Throughput Tissue Grinder is a new product specially developed by our company based on the Scientz-192 product, tailored to meet the needs of market users. Equipped with a 7-inch large-screen touch display, it features simple and intuitive parameter setting and stable operation. As a specialized equipment, it meets the requirement of processing multiple samples simultaneously in fields such as research institutes, universities, agricultural institutes, biomedicine, and food testing.
◣Technical Parameters
| Parameters | Specifications |
|---|---|
| Power Supply | 220V/50HZ, 110V/60HZ |
| Power | 180W |
| Time Setting | 1s-9999s |
| Frequency Setting | 10-70HZ (i.e., 300-2100 oscillations/min) |
| Jig Stroke | 34mm (vertical) |
| Sample Capacity | 2ml adapter: 48-well; 5ml adapter: 12-well |
| Display Mode | 7-inch TFT touch screen display |
| Protection Functions | Cover opening protection, emergency braking function |
| Dimensions (L*W*H) | 369*360*520mm |
