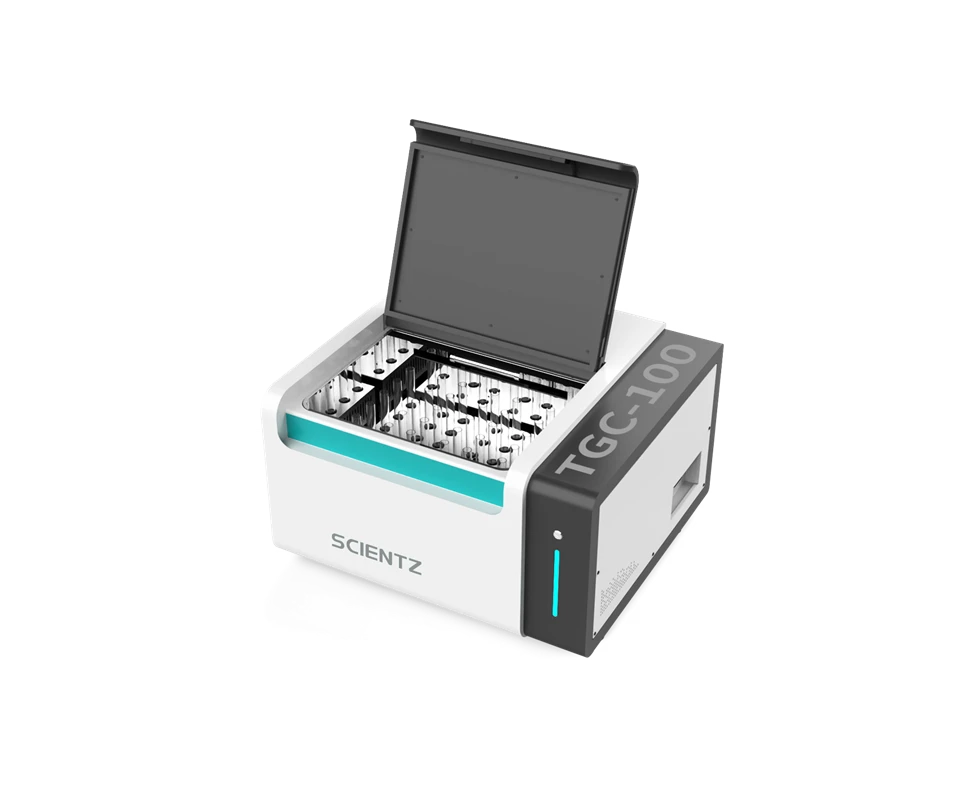

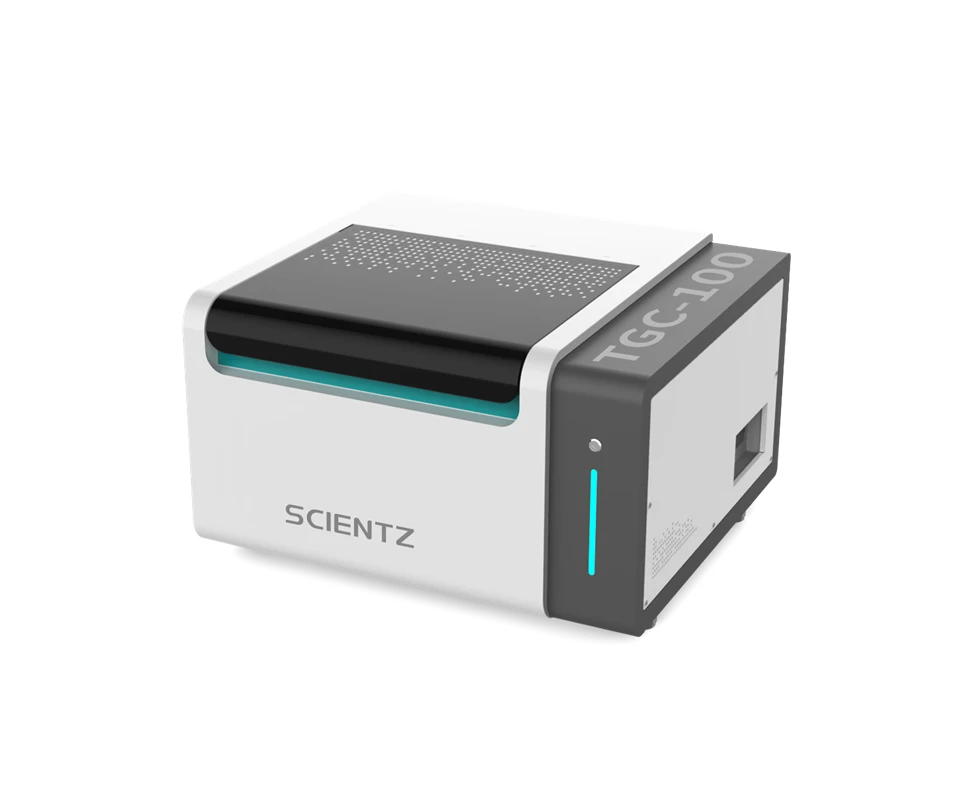

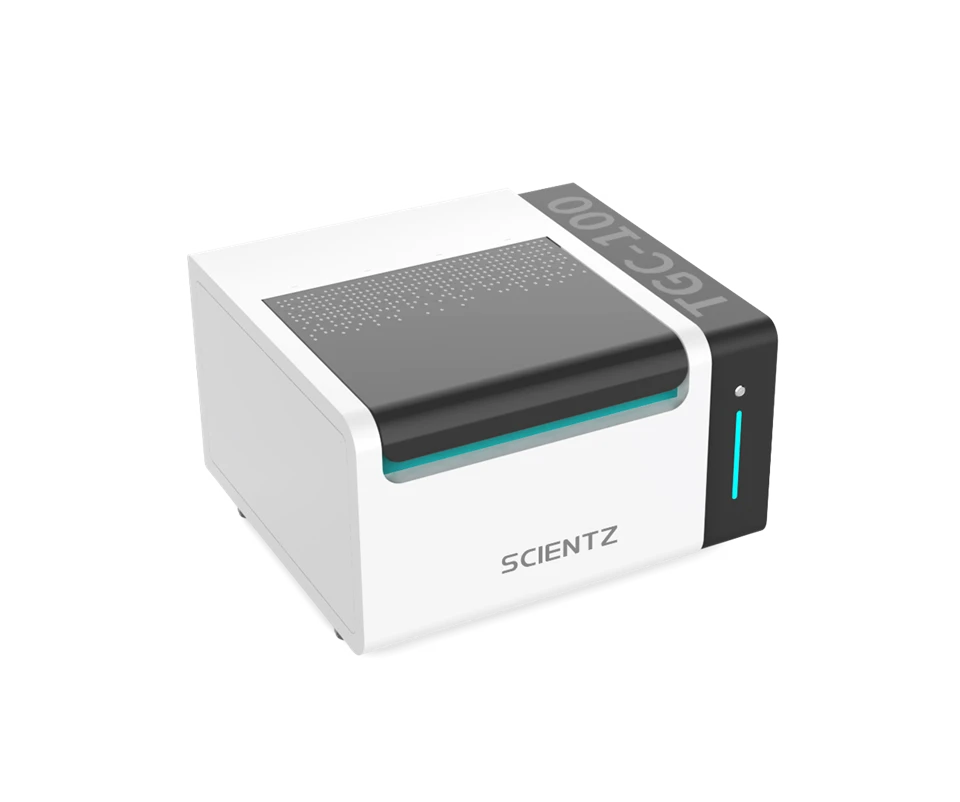

Solve the problem that the current high-throughput screening tools for microorganisms cannot simultaneously realize the real-time cultivation and detection of large-volume and high-concentration samples. TGC-100 uses conventional test tubes as culture containers, combined with advanced optical path systems and mechanical designs, to achieve large-volume cultivation and precise optical density measurement. It can simultaneously detect 36 microbial samples in real time, automatically record growth concentration changes and results, and has an adjustable speed oscillation system and wide-range temperature control.
At the same time, each sample channel of TGC-100 is equipped with an independent RGBW four-color illumination module, which can achieve 0-300000Lux light intensity regulation (approximately 0~5000μmol·m-2·s-1), and can set the light cycle to simulate the changes in the natural light environment for algae cultivation and research.
In addition, a dedicated mobile phone APP can be provided to view data remotely and understand the progress of the experiment in real time.
The whole process does not require personnel on duty, frequent sampling, and completely eliminates the risk of pollution, truly liberating manpower.
Technical Parameters
| Model | TGC-100 |
| Detection Wavelength | 660nm(equivalent to OD600) |
| Absorbance Range | 0~30OD/0~15OD |
| Linear Error | ＜2% |
| Light Source | Laser Diode |
| Light Source Life | 20,000 hours |
| Sampling Interval | Can be set from 3 to 10 minutes |
| Working Duration | 1~1600h |
| Culture Tube | 18mm in diameter, 150mm in height |
| Maximum Number of Plates | 36 |
| Maximum Culture Solution Volume | 20ml(3ml-20ml) |
| Culture Temperature | 30℃~60℃@25℃/ Optional refrigeration: 4～60℃@25℃ |
| Temperature Control Precision | ±0.1℃ |
| Heating Rate | 1℃/minute |
| Shaking Mode | Horizontal Circular Shaking |
| Shaking Amplitude | 2mm |
| Shaking Speed | 50-800rpm;Can be statically cultured |
| Reference Channel Selection Available | YES |
| Post-Processing of Images and Professional Display | YES |
| Sterilization Module | YES |
| Dark Current Subtraction Function | YES |
| Optical Path Standardization | YES |
| Midway Temperature Change Function | YES |
| Background Color Subtraction | YES |
| Audit Trail | YES |
| Fault Diagnosis | Detailed alarm codes, enabling quick identification of fault causes |
| Interface Operation | User-friendly interface, allowing users to get started quickly, with quick operation function |
| Communication | RJ45 Network Interface |
| Main Interface | Parameter setting interface, status display interface, sample selection interface, data display interface, result analysis interface |
| More Menus | Startup interface, login interface, initialization interface and debugging interface |
| Alarm Function | YES |
Application scenarios at a glance
Microbial basic research: optimization of culture conditions, strain modification, stress resistance experiments, microbial growth and metabolism detection, etc.
Food research
Optimization of production processes for yogurt, wine, soy sauce, and other fermented foods
Animal husbandry applications
Poultry/aquaculture pathogenic bacteria prevention and control, disease treatment mechanism research, etc.
Drug research
Research on production processes of probiotics, antibiotics, etc.; Determine the minimum inhibitory concentration of antimicrobial agents, the minimum lethal dose of antibiotics or other compounds, the toxicity of different substances, etc.
Cosmetic research
Development of active cosmetic ingredients
Antibacterial material research
Development of sterile materials, food preservative materials, etc.
Algae culture and online monitoring (optional function)
Cell samples
Algae culture and control experiments; Gradient comparison experiments, suitable for water ecotoxicology research, algae physiological ecology research, water ecology research, etc.
